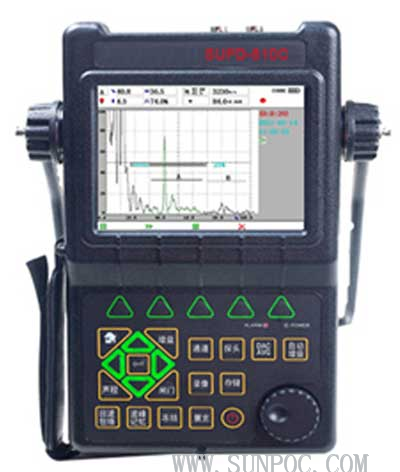

SUFD-810C Cyfrowy ultradźwiękowy defektoskop
Features: The SUFD-810C is an advanced digital ultrasonic flaw detector featuring a multi-color TFT LCD and a host of new features to meet challenging inspection requirements. It combines powerful flaw detection and measurement capabilities, extensive data storage, and the ability to transfer detailed inspection data to the PC via its high-speed USB port. The instrument incorporates many advanced signal processing f...
| Probe Delay/Zero Offset : | 0 to 99.99μs |
| Sensitivity: | 110 dB max in selectable resolution 0.1, 1.0, 2.0, 6.0 dB and locked. |
| Test Modes: | Pulse echo, dual element and thru-transmission |
| Pulser: | Tunable Square Wave Pulser |
| Pulse Repetition Frequency ranges | from 10 Hz to 1000 Hz |
| Pulse Energy: | 200V, 300V, 400V, 500V, 600V selectable |
| Bandwidth: | (amplifier bandpass ): 0.5 to 15 MHz |
| Gate Monitors: | Two independent gates controllable over entire sweep range |
| Rectification: | Positive halfwave, negative halfwave, fullwave, RF |
| System Linearity: | Horizontal: +/-0.2% FSW, Vertical: 0.25% FSH, Amplifier Accuracy +/-1 dB. |
| Reject (suppression): | 0 to 80% full screen height |
| Units: | Inch or millimeter |
| Transducer Connections: | BNC or LEMO |
| Power Requirements: | AC Mains 100-240 VAC, 50-60 Hz |
| Operating Temperature: | -10℃ to 50℃ |
| Storage Temperature: | -30℃ to 50℃ |
