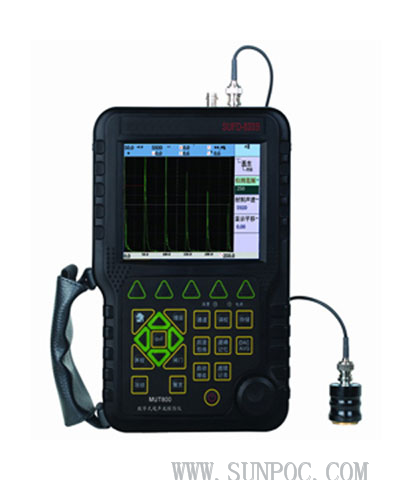

SUFD-800B Cyfrowy ultradźwiękowy defektoskop
Features: The SUFD-800B is an advanced digital ultrasonic flaw detector featuring a multicolor TFT LCD and a host of new features to meet challenging inspection requirements. It combines powerful flaw detection and measurement capabilities, extensive data storage, and the ability to transfer detailed inspection data to the PC via its high-speed USB port. The instrument incorporates many advanced signal processing fe...
Specifications:
| Range: | 0 to 9999 mm, at steel velocity |
| Material Velocity: | 1000 to 9999m/s |
| Display Delay: | -20 to 3400 μs |
| Probe Delay/Zero Off set : | 0 to 99.99μs |
| Sensitivity: | 110 dB max in selectable resolution 0.1, 1.0, 2.0, 6.0 dB and locked. |
| Test Modes: | Pulse echo, dual element and thru-transmission |
| Pulser: | Tunable Square Wave Pulser |
| Pulse Repetition Frequency ranges | from 10 Hz to 1000 Hz |
| Pulse Energy: | Low, Medium and High |
| Damping: | 100, 200, 400 ohms |
| Bandwidth (amplifier bandpass ): | 0.5 to 15 MHz |
| Gate Monitors: | Two independent gates controllable over entire sweep range |
| Rectification: | Positive halfwave, negative halfwave, fullwave, RF |
| System Linearity: | Horizontal: +/-0.2% FSW, Vertical: 0.25% FSH, Amplifier Accuracy +/-1 dB. |
| Reject (suppression): | 0 to 80% full screen height |
| Units: | Inch or mm |
| Transducer Connections: | BNC or LEMO |
| Power Requirements: | AC Mains 100-240 VAC, 50-60 Hz |
| perating Temperature: | -10℃ to 50℃ |
| Storage Temperature: | -30℃ to 50℃ |
