Features:

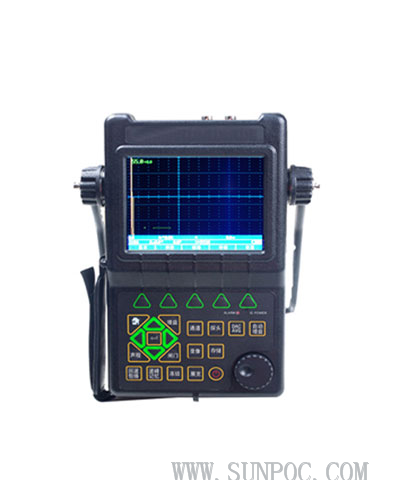

SUFD-650C Portable Ultrasonic Flaw Detector with hi-resolution color TFT LCD display. The background color and the wave color can be selectable according to the environment. LCD brightness can be manually set. Continue working over 8 hours with high performance lithium-ion battery module (with large capacity lithium-ion battery option), easy to be dismantled and the battery module can be charged independently offline. It is light and portable, easily to be taken by one hand; easy operation; superior reliability makes it long life.
Range: 0~ 9999mm (at steel velocity); range selectable in fixed steps or continuously variable.
PULSER: Spike excitation with low, middle and high choices of the pulse energy.
Pulse Repetition Rate: manually adjustable from 10 to 1000 Hz.
Pulse width: Adjustable in a certain range to match different probes.
Damping: 200Ω, 300Ω, 400Ω, 500Ω, 600Ωselectable to meet different resolution and sensitivity need.
Probe work mode: Single element, dual element and through transmission;
Receiver: Real-time sampling at 160MHz high speed enough to record the defect information.
Rectification: Positive half wave, negative half-wave, full wave, and RF.
DB Step: 0dB, 0.1 dB, 2dB, 6dB step value as well as auto-gain mode
Alarm: Alarm with sound and light,.
Memory: Total 100 configuration channels store all instrument operating parameters plus DAC/AVG curve; stored configuration data can be easily previewed and recalled for quick, repeatable instrument setup. Total 1000 datasets store all instrument operating parameters plus A-scan. All the configuration channels and datasets can be transferred to PC via USB port.
Main functions:
Peak Hold: Automatically searching the peak wave inside the gate and hold it on the display.
Equivalent diameter calculation: find out the peak echo and calculate its equivalent diameter.
Continuous Record: Record the display continuously and save it to the memory inside the instrument.
Defect Localization: Localize the defect position, including the distance, the depth and its plane projection distance.
Defect Sizing: calculate the defect size
Defect Evaluation: Evaluate the defect by echo envelope.
DAC: Distance Amplitude Correction
AVG: Distance Gain Size curve function
Crack measure: Measure and calculate the crack depth
B-SCAN: Display the cross-section of the test block.
Real-time clock: Real time clock for tracking the time.
Communication: USB2.0 high-speed communication port
