Spolaryzowany mikroskop metalograficzny odwrócony IMM-50

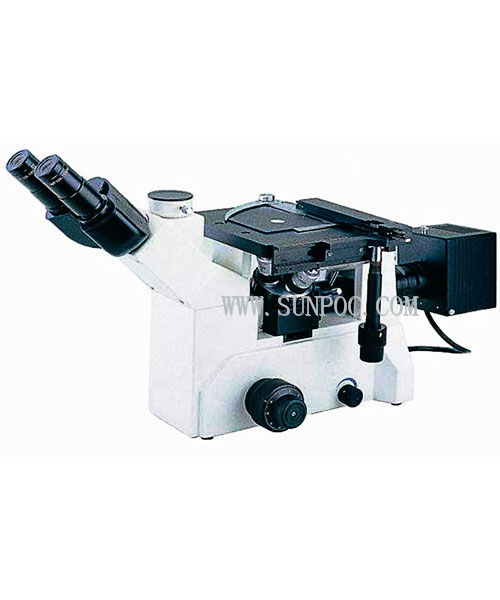

Trinocular Inverted polarized Metallurgic Microscope IMM-50 Suitable for metallography image analysis system Applications: A new type Trinocular Inverted Metallurgic Microscope, is used for identification and analysis of the microstructure of all kinds of metals and alloy materials; quality identification for castings; inspection of raw material or metallographic structure analysis of process material and research s...
Magnification and View field:
| Plan Achromatic Objective | Wide field WF10×/18 | Plan PL12.5×/16 | ||||||
| Type | magnify | N.A | system | Working Distance (mm ) | View field (mm) | magnify | View field (mm) | magnify |
| PL | 10× | 0.25 | dry | 15.3 | Ф1.8 | 100× | Ф1.35 | 125× |
| PL | 20× | 0.4 | 7.31 | Ф0.9 | 200× | Ф0.67 | 250× | |
| PL | 40× | 0.65 | 0.63 | Ф0.45 | 400× | Ф0.34 | 500× | |
| PL | 100× | 1.25 | oil | 0.17 | Ф0.18 | 1000× | Ф0.13 | 1250× |
Specification list:
| Model | IMM-50 | |
| Optical | Magnification | 50×-1250× |
| Plan Achromatic Objective | PL10× PL 20× PL 40× PL 100× | |
| Eyepiece | PL10× PL12.5× | |
| Eyepiece | 10×(focusing) 0.1/18mm micrometer 0.01/1mm | |
| Frame | configuration | Inverted, optical trinocular tube, gemel type, obliquity 45°, pupil 55-75mm dioptre ±5% adjustable |
| Revolving objective | 4 hole circumvolve | |
| Double layer stage | Stage size:175x150mm | |
| moving range 75x50mm X-Y resolution 0.1mm | ||
| Rotary stage | Diameter Φ100mm , 360°Rotatable, Graduation 90° | |
| Loading plate | hole Diameter Φ10/Φ15/Φ20/Φ40 mm | |
| Focus system | coaxial jiggle Up/down movement: 15mm | |
| Fine adjustment: 0.002mm Up and down locking & torsion adjustment | ||
| Light System | Brightfield illumination | Kohler illumination; Variable
aperture & field diaphragm ; |
| Adjustable brightness ; | ||
| Halogen Lamp: 20W/6V ;
Filters: Yellow/Green/Blue/Frosted |
||
| Polarizing | Polarizing and checking plate | |
| Power supply | AC90-240V/50-60Hz 30W | |
| Dimensions & Weight | Machine N.W.:13KG
Dimensions: 340(L)x400(W)x460(H)mm |
|
Complete accessory:
| 1. Main body / trinocular tube | 11. Specimen press plate 2 suits |
| 2. Light source | 12. compound immersion oil 1 pc |
| 3. Plan objective 4 units | 13. Standard wire(cable) 1 pc |
| 4. plan eyepieces 6 units | 14. Spare lamp / fuse 1 pc |
| 5. micrometer eyepiece 1 pc | 15. Dust cover 1 pc |
| 6. micrometer 1 pc | 16. Qualified certificate 1 pc |
| 7. Round stage 1 pc | 17. Manual 1 pc |
| 8. loading plate 1 pc | 18. Packing list 1 pc |
| 9. Filter: yellow/green/ Blue 1 pc | 19. After service card 1 pc |
| 10. Polarized plate 1 pcs |
Optional parts:
| A. Eyepiece and Objective with various kinds of magnification | B. IMM-50V Image processing system |
| C. IMM-50D digital CCD | D. IMM-50VS metallography image analysis system |
