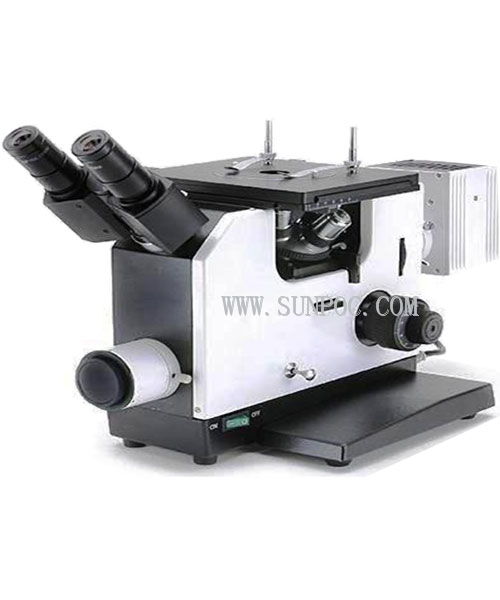

Trinocular Inverted polarized Metallurgic Microscope IMM-60

Suitable for metallography image analysis system



Applications:

A new type Trinocular Inverted Metallurgic Microscope, is used for identification and analysis of the microstructure of all kinds of metals and alloy materials; quality identification for castings; inspection of raw material or metallographic structure analysis of process material and research some surface such as craze and surface coating.

Operating with the polished surface down and no inlays, suitable for big and all kinds of specimen.

With elegant design & making and complete system, it is suitable for observation, analysis and measurement of the metallographic structure, infiltrate layers, clad layers, melt deep and crazing.

With the polarizer device and iris diaphragm brightfield illumination, it is suitable for observation and photography of grain, grain boundaries and ductile iron.

It can avoid the knocking between the specimen and objective as equipped with parfocal objectives and lifting parfocal objectives with locking device, it is suitable for mass detection to improve work efficiency.

With two optical output, the microscope can be routine used and provides synchronized image output, expand photography or digital photography system and professional quantitative metallography image analysis computer operating system.

Kategorie: ,

Opis

Magnification and View field:

Plan Achromatic Objective Wide field Eyepiece WF10×/18 Plan Eyepiece        PL12.5×/16
Type magnify N.A system Working Distance (mm) View field (mm) magnify View field (mm) magnify
PL 10× 0.25 dry 15.3 Ф1.8 100× Ф1.35 125×
PL 20× 0.4 7.31 Ф0.9 200× Ф0.67 250×
PL 40× 0.65 0.63 Ф0.45 400× Ф0.34 500×
SPL 100× 1.25 oil 0.17 Ф0.18 1000× Ф0.13 1250×



Specification list:

Model IMM-60
Optical Magnification 50×-1250×
Plan Achromatic Objective PL10× PL 20× PL 40×  PL 100×(oil)
Eyepiece PL10×  PL12.5×
Eyepiece 10×(focusing) 0.1/18mm  micrometer 0.01/1mm
Frame configuration Inverted, optical trinocular tube, gemel type, obliquity 45°, pupil 55-75mm dioptre ±5% adjustable
Revolving objective 4 hole ball bearing circumvolve
Double layer stage Stage size:180x155mm
moving range 75x50mm   X-Y resolution 0.1mm
Rotary stage Diameter Φ100mm , 360°Rotatable, Graduation 90°
Loading plate hole Diameter Φ10/Φ15/Φ20/Φ40 mm
Focus system coaxial  jiggle Up/down movement: 30mm
Fine adjustment: 0.002mm Up and down locking & torsion adjustment
Light System Bright-field illumination Kohler illumination; Variable aperture & field diaphragm ;
Adjustable brightness ;
Halogen Lamp: 30W/6V ; Filters: Yellow/Green/Blue/Frosted
Polarizing Polarizing and checking plate
Power supply AC90-240V/50-60Hz    30W
Dimensions & Weight Machine N.W.:16 KG

Dimensions 680(L)x470(W)x340(H)mm

Complete accessory:

1. Main body / trinocular tube 12. Polarized plate          1 pcs
2.Light source 13. Specimen press plate    1 suits
3. Left/right splint plate        1pc 14. compound immersion oil  1pc
4. Binocular eyepieces tube    1pc 15. Standard wire(cable)     1pc
5. Plan objective              3 units 16. Spare lamp / fuse        pc1
6. Semi-plan objective 100X(oil) 1pc 17. Dust cover              1pc
7. plan eyepieces             4 units 18. Qualified certificate      1pc
8. divisional eyepiece         1pc 19. Manual                 1pc
9. Micrometer               1pc 20. Packing list             1pc
10. loading plate             3PC 21. After service card        1pc
11. Filter: yellow/green/ Blue  each one

Optional parts:

A. Eyepiece and Objective with various kinds of magnification B. IMM-50V Image processing system
C. IMM-60D digital CCD D. IMM-60VS metallography image analysis system
