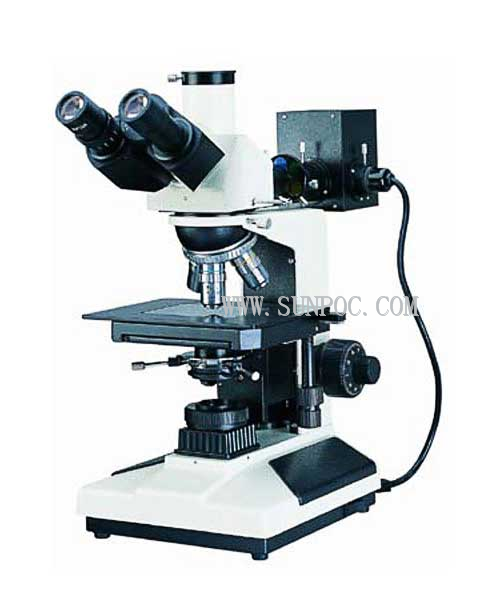

Upright Metallurgical Microscope UMM-12 Series

The upright trinocular metallurgical microscope has a reflected transmitted and a polariscope

Features:

Upright design is suitable to find a fixture object and to observe, research and analyse the object on a broader surface. The instruments are widely used in the field of IT, PCB and micro pellets、threads、fibre、surface coatings etc., and testing、researching、and analyzing metallurgical structure of materials. They are also broadly suitable for factories、laboratories、and teaching and researching areas.

Reflected (Co-axial vertical illumination) and transmitted light source fits for various observations and shoots.

The polarizing co-axial vertical illumination system, generating vivid images and clarifying contrasts, is proper for various complicated observation and shoots.

Co-axial vertical and horizontal moveable loading stage and a variety buitl-in fliter switching makes operation easy.

Ascend and descend focusing system is equipped with a limit switch device, which avoids collision between specimens and objective lens and repeated focusing in high volume testing.

Kategorie: ,

Opis

Magnification and field (Standard)：

Plan achromatic Objective with long working distance wide field eyepieces WF10×/18 Plan eyepieces(option) PL12.5×/16
type magnify N.A System Working distance

(mm)

 Vision field: (mm) Total magnify Vision field

(mm)

 Total magnify
Plan field PL5× 0.12 dry 35.4 Ф4.2 50× Ф3.4 63×
LWD PLL10× 0.25 15.3 Ф2.9 100× Ф2.3 125×
LWD PLL20× 0.40 8.67 Ф1.6 200× Ф1.3 250×
LWD PLL40× 0.60 3.63 Ф0.48 400× Ф0.38 500×
LWD PLL60× 0.75 2.26 Ф0.37 1000× Ф0.20 1250×

Specifications:

Items/Models UMM-12A UMM-12B UMM-12C
Optical

system

 Total amplification ratio 50×- 400× 50×- 600×
plan achromatic objective PL 5× PLL 10× PLL 20× PLL 40×
PLL 60×（PLL big distance）(optional)
Wide field eyepieces WF10×/18
Intermediate Attachment Cross WF eyepiece and micrometers 10× zoom graduation:0.1/18 mm  micrometer 0.01/1 mm
Frame Basic Structure Upright Design, Hinge Trinocular Tube：45°obliquity, pupil distance 55-75 mm, Diopter ±5% (adjustable)
Revolving objective 4 hole ball bearing circumvolve 5 hole ball bearing circumvolve
Double layer stage Size:185×140 mm, moving rance:70×50 mm,
vernier graduation 0.1 mm
Focus Coaxial coarse and fine, Up-down adjusting range:35mm, Vernier Calibration 0.002 mm, System up-down adjusting locking and torque adjusting
Illumination systems Reflected light Kohler Illumination Variable Aperture and field diaphragm, Adjustable Brightness Halogen lamp 20W/6V
polarizing setting: polarizer and analyzer
Inside switching filters: yellow/green/blue/frosted
Transmitted light lifting Abbe condenser, built-in aperture diaphragm and filter and adjustable halogen lamp
/ Separate transmitted and reflected light Simultaneously transmitted and reflected light
Power supply AC 110/220V/50Hz 30W
Weight/Dimensions Weight：10 Kg; Package Size： 340x400x460 cm

Complete accessory：

Main body Vertical Illumination
Trinocular Tube Light Source
Connector port card wire
Plan objectives dust cover
Wide field eyepieces Spare fuse
divisional eyepiece spare lamp
Micrometer Manual
Abbe condenser qualified certificate
Transmitted filters Packing list
Polarizing sheets Warranty
Working Stage Glass
