Pionowy mikroskop metalurgiczny UMM-100

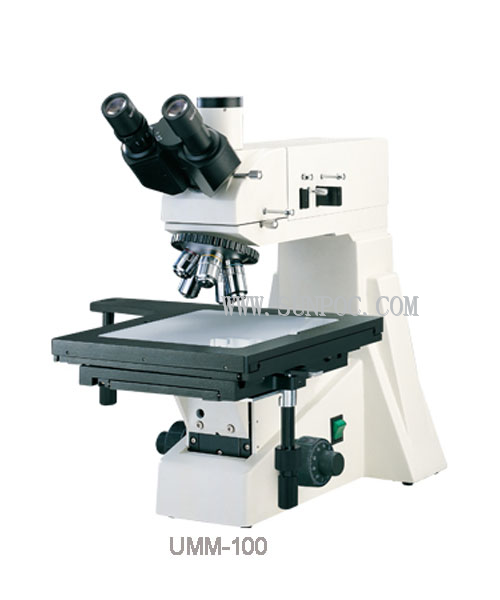

Upright Metallurgical Microscope UMM-100 and UMM-200

The upright trinocular metallurgical microscope has a polariscope with a big working stage.

Features:

Upright design is suitable to find a fixture object and to observe, research and analyse the object on a broader surface. The instruments are widely applicable in the field of IT, PCB and micro pellets、threads、fibre、surface coatings etc., and testing、researching、and analysing metallurgical struture of materials. They are also broadly suitable for factories、laboratories、and teaching and researching areas.

A big shifting range loading stage is suitable to observe the specimen of large PCBs and silicon wafers etc.

The polarising co-axial epi-illuminating system, generating sharp pictures and clarifying contrasts, is proper for various complicated ovservations and shoots.

Swift co-axial vertical and horizontal shiting loading stage and a variety buitl-in fliter switching make operation easy.

Kategorie: ,

Opis

Magnification and field (Standard)：

Plan achromatic objective with long working distance Wide field eyepieces WF10×/18 Plan ocular (optional) PL12.5×/16
Type magnify N.A System Working distance(mm) View field(mm) Total magnify view field(mm) Total magnify
Plan  field PL5× 0.12 dry 35.4 Ф4.2 50× Ф3.4 63×
LWD PLL10× 0.25 15.3 Ф2.9 100× Ф2.3 125×
LWD PLL20× 0.4 8.67 Ф1.6 200× Ф1.3 250×
LWD PLL40× 0.6 3.63 Ф0.48 400× Ф0.38 500×
LWD PLL60× 0.75 2.26 Ф0.37 1000× Ф0.30 750×

Specifications:

Models UMM-100 UMM-200 UMM-100A UMM-200A
Optical Total amplification 50×100×200×400×600×
system achromatic objective PL 5× PLL 10× PLL 20× PLL 40×

PLL 60×（PLL Long Working Distance）
Wide field

eyepieces

 WF10×/18
Attachment Test Cross WF eyepiece and micrometers 10×zoom graduation 0.1/18 mm micrometer 0.01/1 mm
Frame Basic Structure Upright Design, Hinge Trinocular Tube：45°obliquity,

Pupil distance 55-75 mm, Diopter ±5% (adjustable)
Revolving objective 5 hole ball bearing circumvolve
Double layer stage 230x230mm; move range: 150×150mm, with swift shifting and locking system 270x270mm, moving range 200x200mm with swift shifting and locking system
focusing system Coaxial coarse and fine, Up-down adjusting range:35mm, Vernier Calibration 0.002 mm, Systems up-down adjusting locking and torque adjusting
focusing modes Lifting stage Lifting

lens tubes

 Lifting stage Lifting

lens tubes
Illumination systems Reflected illumination Kohler Illumination,  Variable Aperture and field diaphragm,

Adjustable, Brightness,  halogen lamp 20W/6V
Inside switching color filters: yellow/green/blue/frosted
Built-in External Built-in External
Polarizing light system Co-axial epi-illuminating polarizing setting：polarizer and analyzer
Power supply AC220V/50Hz 30W
Package Weight：17Kg, Package Size: 550x540x470 Cm

Complete accessory：

Main body Light Source
Big stage wire
Trinocular Tube dust cover
Plan objectives Spare fuse
Wide field eyepieces spare lamp
divisional eyepiece Manual
Micrometer qualified certificate
filters Packing list
Polarizing sheets Warranty
Vertical Illumination

 Optional accessories：

A. Eyepieces and Field Lens：

various magnification ratio

 B. Image Processing System（UMM-201AV）
C. Digital Photography System

（UMM-201AD）

 D. Metallurgical Image Analyzing

System（UMM-201AM）
