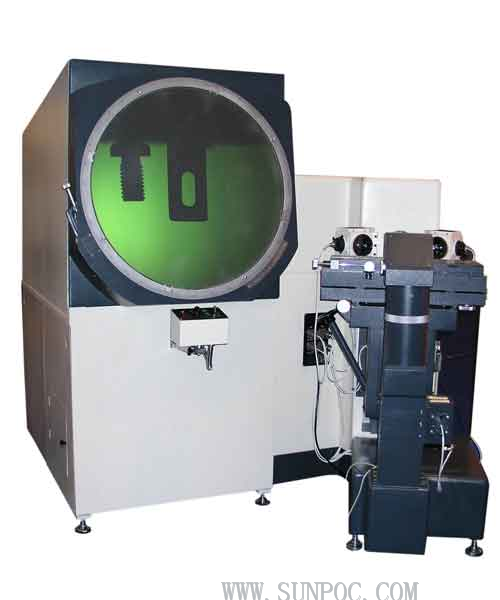

SP-800 Φ800 Projektor horyzontalny profilu
SP-800 Φ800 Horizontal Profile Projector Features: SP-800 has three type: SP-800A digital measuring projector SP-800B data processing projector SP-800E full-auto projector The in-line type is adopted for the objective, cone fitted, compressed by spring, accurate in central location. It is equipped with circular worktable which can be turned around in all directions, convenient for measuring gear parts The deflection...
Technical parameters:
| Model | SP-800 |
| Projection screen: | Φ800 mm |
| Rotation range: | 360° |
| Objective Magnification Power | 10X 20X 50X 100X |
| Object Visual Field | Φ80mm φ40mm φ16mm φ8mm |
| Object Working Distance | 206 mm 123mm 85mm 78mm |
| Range of X-coordinate (mm) | 300mm |
| Range of Y-coordinate (mm) | 200mm |
| Resolution: | 0.001 (mm) |
| Load capacity of the worktable (kg) | 50kg |
| Worktable area (mm) | 630x200mm |
| Stroke of Z-coordinate (Focusing): | 80 (mm) |
| Accuracy of the instrument: | (4+L/50)μm, |
| Worktable rotation | ±15° |
| Transmission lighting: | 24V 150W Halogen tungsten lamp |
| Reflecting lighting: | 16V 150W Halogen tungsten lamp |
| Overall sizes of the instrument (mm): | 2130×1800×1950 |
| weight: | 19100 kg |
