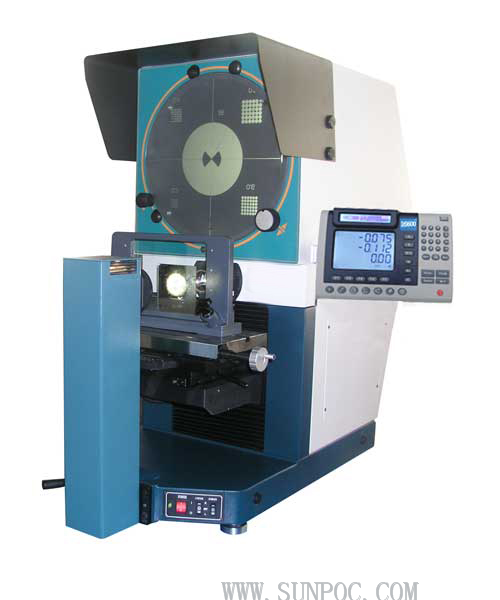

SP-26 Φ400 Projektor horyzontalny profilu
SP-26 SP-26 Φ400 Horizontal Profile Projector Features: The horizontal light-path is adopted, convenient for the detection of various axis parts; the rotation of worktable is possible. With structures strong in commonality, this instrument is light in weight and beautiful in appearance; Imported V-type straight-line slide-way is adopted for the hoisting driving of the worktable, light and comfortable in driving; The...
Pobierz dokument produktu
Karta katalogowa PDF dla tego produktu zostanie dodana wkrótce. W międzyczasie możesz wysłać zapytanie, a przygotujemy komplet materiałów informacyjnych.
Technical parameters:
| Model | SP-26 |
| Projection screen: | Φ400 mm |
| Rotation range: | 360° |
| Objective Magnification Power | 10X 20X 50X 100X |
| Object Visual Field | Φ40mm φ20mm φ8mm φ4mm |
| Object Working Distance | 88 mm 81 mm 54 mm 45mm |
| Range of X-coordinate (mm) | 250mm |
| Range of Y-coordinate (mm) | 150mm |
| Resolution: | 0.001 (mm) |
| Load capacity of the worktable (kg) | 15kg |
| Worktable area (mm) | 450x150mm |
| Stroke of Z-coordinate (Focusing): | 0~80 (mm) |
| Accuracy of the instrument: | (3+L/75)μm, |
| Transmission lighting: | 24V 150W Halogen tungsten lamp |
| Reflecting lighting: | 24V 150W Halogen tungsten lamp |
| Overall sizes of the instrument (mm): | 687×443×942 |
| Mainframe weight: | 150 kg |
