IMM-70 Mikroskop metalograficzny odwrócony

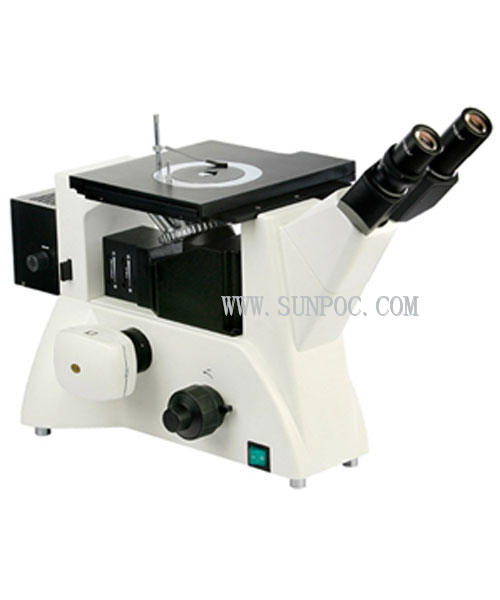

Trinocular Inverted polarized Metallurgic Microscope IMM-70

excellent UIS optical system Suitable for metallography image analysis system



Applications:

IMM-70 Inverted metallurgical microscope is equipped excellent UIS optical system and modularization function design so that update system expediently and achieved polarization, dark field observation. Compact and steady main frame body is embodiment for the shock resistance. The ideal ergonomic design is adopted in this unit and has easier operation and wider space. This is ideal optical instrument for micro observation in metallurgical structure and surface morphology. It is suitable for research in metallography, mineralogy, precision engineering, etc.

Kategorie: ,

Opis

Magnification and View field:

 infinity distance optical system objective Wide field Eyepiece WF10×/20 Plan Eyepiece        PL12.5×/16
Rodzaj magnify N.A system Working Distance (mm) View field (mm) magnify View field (mm) magnify
Obiektyw optyczny ∞4x 0.10 dry 25 Ф5 40x Ф4 50x
∞10× 0.25 12 Ф2 100× Ф1.6 125×
∞20× 0.40 10 Ф1 200× Ф0.8 250×
∞40× 0.60 7.1 Ф0.5 400× Ф0.4 500×
PL

(optional)

 PL50x 0.75 1.9 Ф0.4 500x Ф0.32 625x
PL80x 0.9 0.9 Ф0.25 800× Ф0.02 1000×







Specification list:

Model IMM-70
Optyka Powiększenie 40x  100x   200x   400x
Plan Achromatic Objective ∞4x   ∞10x   ∞20x  ∞40x
W F Eyepiece WF 10x/20mm
Eyepiece 10×(focusing) 0.1/20mm  micrometer 0.01/1mm
Frame configuration Inverted, optical trinocular tube, gemel type, obliquity 45°, pupil 55-75mm dioptre ±5% adjustable
Revolving objective 4 hole ball bearing circumvolve
Double layer stage Stage size:242x172mm
moving range 75x50mm   X-Y resolution 0.1mm
Rotary stage Loading plateΦ110mm
Focus system coaxial  jiggle Up/down movement: 30mm
Fine adjustment: 0.002mm Up and down locking & torsion adjustment
Light System Bright-field illumination Kohler illumination; Variable aperture & field diaphragm ;
Adjustable brightness ;
Halogen Lamp: 30W/12V ;

Filters: Yellow/Green/Blue
Polarizing Polarizing and checking plate
Power supply AC90-240V/50-60Hz    45W
Dimensions & Weight Machine N.W.:12 KG

Dimensions 470(L)x400(W)x380(H)mm

Complete accessory:

1. Main body / trinocular tube 10. Polarized plate          1 pcs
2. Light source 11. Specimen press plate    1 suits
3. infinity distance objective     4pc 12. Standard wire(cable)     1pc
4. Trinocular eyepieces tube    1pc 13. Spare lamp / fuse        1pc
5. eyepieces                  2 pc 14. Dust cover              1pc
6. divisional eyepiece          1pc 15. Qualified certificate      1pc
7. Micrometer                1pc 16. Manual                 1pc
8. loading plate               2PC 17. Packing list             1pc
9. Filter: yellow/green/ Blue  each one 18. After service card        1pc

Optional parts:

A. Eyepiece and Objective B. IMM-70V Image processing system
C. IMM-70D digital CCD D. IMM-70VS image analysis system
