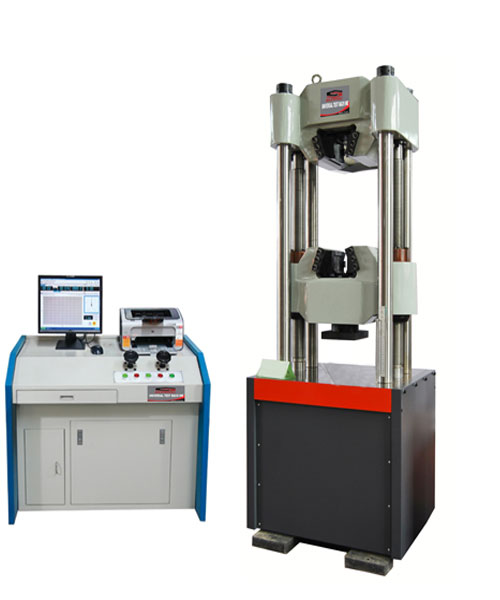

WEW–600D Uniwersalna hydrauliczna maszyna wytrzymałościowa (UTM)
WEW – 600D Hydraulic Universal Testing Machine (UTM) WEW – D series: the load frame appearance is streamline designed and exquisitely made, four poles and double guide screws form loading test space; Underneath oil cylinder use hydrostatic oil film clearance seal technology, Upward-Downward moving beam adopt turbine, worm transmit mechanism and eliminate gap mechanism, it make sure the beam moving smoothly. without ...
Pobierz dokument produktu
Karta katalogowa PDF dla tego produktu zostanie dodana wkrótce. W międzyczasie możesz wysłać zapytanie, a przygotujemy komplet materiałów informacyjnych.
Specification list:
| model | WEW-300D | WEW-600D | WEW-1000D |
| columns | 6 columns (4 Stand columns,2 guide screw) | ||
| max.force | 300kN | 600kN | 1000kN |
| grade | 1 | 1 | 1 |
| force range | 2%-100%FS | 2%-100%FS | 2%-100%FS |
| force resolution | 1/500000 | 1/500000 | 1/500000 |
| force accuracy | ±1% | ±1% | ±1% |
| displacement resolution | 0.01mm | 0.01mm | 0.01mm |
| displacement accuracy | ±1% | ±1% | ±1% |
| deformation range | 2%-100%FS | 2%-100%FS | 2%-100%FS |
| deformation resolution | 0.001mm | 0.001mm | 0.001mm |
| deformation accuracy | ±1% | ±1% | ±1% |
| wedge clamp | hydraulic auto clamp | hydraulic auto clamp | hydraulic auto clamp |
| round specimen | Φ10-Φ20 20-Φ32 | Φ13-Φ40 | Φ13-Φ40 Φ40-Φ60 |
| flat specimen thickness | 0-15mm 15-30mm | 0-15mm 15-30mm | 2-20mm 20-40mm |
| press plate size | Φ120mm | Φ160mm | 204*204 |
| distance of bending support | 400mm | 400mm | 310mm |
| diameter of bending roller | Φ30 | Φ30 | Φ40 |
| width of bending roller | 140mm | 140mm | 140mm |
| bending capacity | 100mm | 100mm | 150mm |
| pull space | 550mm | 550mm | 660mm |
| compression space | 450mm | 550mm | 530mm |
| wide | 460mm | 460mm | 510mm |
| table size(mm) | 720*500 | 720*510 | 850*580 |
| machine size(mm) | 720×610×1890 | 720×610×1960 | 850x665x2357 |
| oil sources | 1020x620x810 | 1020x620x810 | 1020x620x810 |
| weight (machine) kgs | 1900 | 1900 | 3000 |
| weight (oil sources) kgs | 300 | 300 | 300 |
| power | 2.6KW 380V，50HZ | 2.6KW 380V，50HZ | 2.6KW 380V，50HZ |
