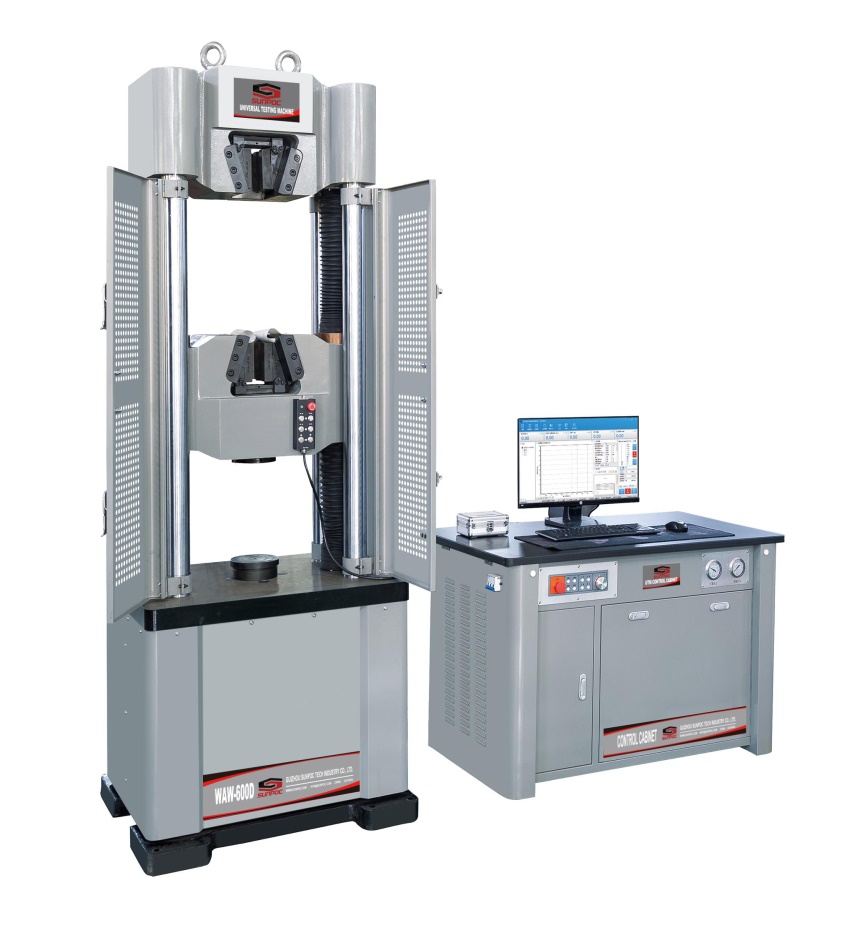

WAW–600E Uniwersalna hydrauliczna maszyna wytrzymałościowa 600KN
[video width="640" height="368" mp4="https://sunpoc.pl/wp-content/uploads/2019/10/Maszyna-wytrzymałościowa-600kn-hydrauliczna-sunpoc.mp4"][/video] WAW – 600E: to model o zmodyfikowanej konstrukcji i doskonałej ergonomii. Wyposażony w cztery kolumny i podwójne śruby prowadzące, które tworzą przestrzeń roboczą. Na tłoku pod cylindrem olejowym zastosowano technologię hydrostatycznego filmu olejowego zapewniającego dosk...
Specification list:
| model | WAW-300E | WAW-600E | WAW-1000E | WAW-2000E |
| columns | 6 columns (4 stand columns,2 guide screw) | |||
| max.force | 300kn | 600kn | 1000kn | 2000kn |
| grade | 0.5 | 0.5 | 0.5 | 0.5 |
| force range | 1%-100%fs | 1%-100%fs | 1%-100%fs | 1%-100%fs |
| force resolution | 1/350000 | 1/350000 | 1/350000 | 1/350000 |
| force accuracy | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| displacement resolution | 0.007mm | 0.007mm | 0.007mm | 0.007mm |
| displacement accuracy | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| deformation range | 1%-100%fs | 1%-100%fs | 1%-100%fs | 1%-100%fs |
| deformation resolution | 0.03μm | 0.03μm | 0.03μm | 0.03μm |
| deformation accuracy | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| speed mm/min | 0.007~100 | 0.007~100 | 0.007~100 | 0.007~100 |
| speed accuracy | ±0.2％ | ±0.2％ | ±0.2％ | ±0.2％ |
| wedge clamp | hydraulic auto | hydraulic auto | hydraulic auto | hydraulic auto |
| round specimen | φ10-φ20 φ20-φ32 |
φ10-φ18 φ18-φ29 φ29-φ40 |
φ10-φ30 φ30-φ45 φ45-φ55 |
φ15-φ30 φ30-φ55 φ55-φ70 |
| flat specimen thickness | 2-13, 3-25mm | 2-16, 16-30mm | 2-20, 20-40mm | 10-40,40-70mm |
| flat specimen wide | 75mm | 90mm | 100mm | 120mm |
| press plate size | φ120mm | φ160mm | 204*204mm | 240*240mm |
| distance of bending | 400mm | 440mm | 380mm | 430mm |
| diameter of bending roller | φ30 | φ30 | φ40 | φ40 |
| width of bending roller | 140mm | 140mm | 140mm | 160mm |
| bending capacity | 100mm | 100 | 140 | 150 |
| pull space | 600mm | 740mm | 800mm | 950mm |
| compression space | 530mm | 650mm | 670mm | 750mm |
| wide | 465 | 485 | 515 | 700 |
| table size | 660*540 | 710*610 | 780*680 | 1000*720 |
| machine size(mm) | 740×620×2058 | 790×690×2330 | 890×760×2660 | 1120×850×3270 |
| oil sources | 1150x870x650 | 1150x870x650 | 1150x870x650 | 1150x870x650 |
| weight (machine) kgs | 2000 | 2500 | 3500 | 6000 |
| weight (oil sources) kgs | 300 | 300 | 300 | 300 |
| power | 2.6kw 380v，50hz | 2.6kw 380v，50hz | 3kw 380v，50hz | 3kw 380v，50hz |
