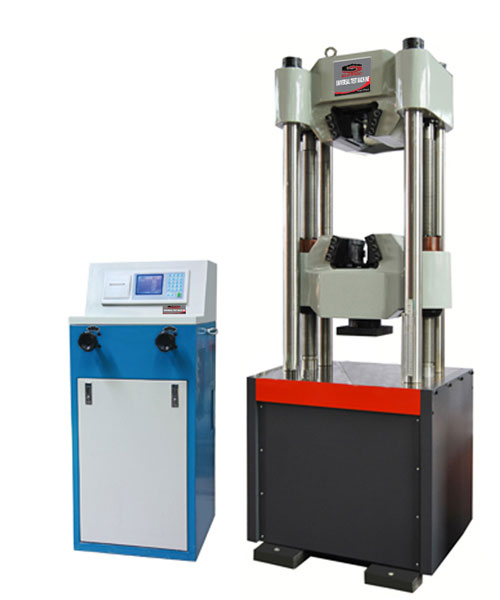

WES-300D LCD Uniwersalna hydrauliczna maszyna wytrzymałościowa
WES-300D LCD hydraulic universal testing machine WES – D series: is underneath type hydraulic universal testing machine，which is used for the testing of stretching, compressing, bending, cut the mental and nonmetal material such as cement, concrete and plastic. It also can accomplish mechanical test of Steel Strand, wire rope, chain, welding wire, adhesive tape and member after add accessory. It is widely used in in...
Specification list:
| model | WES-100D | WES-300D | WES-600D | WES-1000D |
| maximum test force(kn) | 100 | 300 | 600 | 1000 |
| valid measurement range of test force | 2%~100%FS | |||
| test force accuracy | ±1% | |||
| valid measurement range of deformation | 2%~100%FS | |||
| deformation measurement accuracy | ±0.5% | |||
| moving measuring | Optical encode, resolution:0.01mm | |||
| piston stroke（mm） | 150 | 150 | 150 | 150 |
| tensile testing space（mm） | 520 | 520 | 520 | 620 |
| solidity testing space（mm） | 420 | 420 | 420 | 520 |
| clamping type | hydraulic clamp | |||
| the distance between columns (mm) | 460 | 460 | 450 | 510 |
| overload protection | 2%-5% | |||
| holding diameter of round specimen (mm) | Ф4~Ф20 | Ф10~Ф32 | Ф13~Ф40 | (St Ф13~40) |
| holding thickness of flat specimen (mm) | 0~15mm | 0~15mm | 0~30mm | 0~40mm |
| holding wide of flat specimen（mm） | 75 | 75 | 80 | 125 |
| press plate size （mm） | Ф100 | Ф120 | Ф160 | 204×204 |
| distance of bending support（mm） | 30-400 | 30-400 | 30-500 | 40-500 |
| the width of bending roll support（mm） | 140 | |||
| bending curvature（mm） | 100 | 100 | 100 | 130 |
| clipping sample diameter（optional）（mm） | Ф10 | Ф10 | Ф10 | – |
| pump motor power (kw) | 2.2 | |||
| beam motor power (kw) | 0.37 | 0.37 | 0.37 | 0.55 |
| external dimension（mm） | 730*570*1845 | 730*570*1845 | 730*570*1900 | 850*665*2340 |
| control box size（mm） | 1020*620*810 | |||
| weight (kg) | 2000 | 2000 | 2000 | 3000 |
| power supply | 380V 50 Hz | |||
