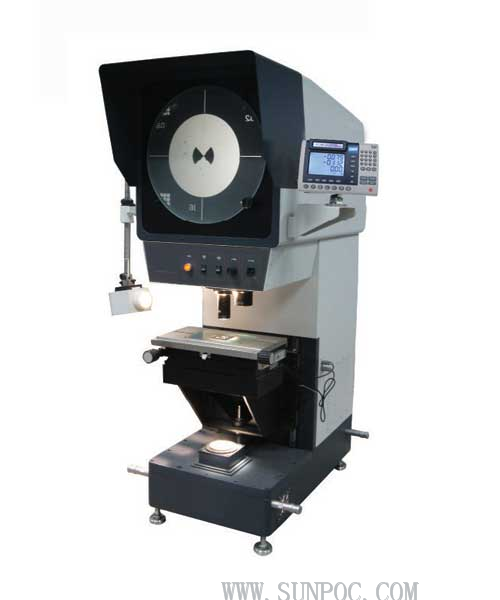

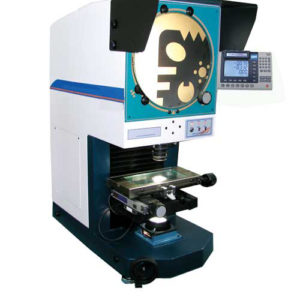

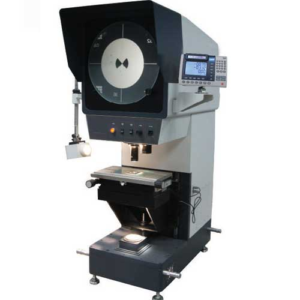

SP-500 Φ500 Projektor profilu
Application: This digital type high-precision projector is a highly efficient measuring instrument integrating light, machine and electricity. It can be widely used for industries such as mold manufacturing, metal work pressing, electronics, instrument, horologe, as well in universities, research institutes and metering examination departments. Features: This instrument is a precession measuring device integrating o...
Technical parameters:
| Model | SP-500 | SP-600 |
| Projection screen | Φ500mm | Φ600mm |
| Projection screen’s rotation angle: | 0～360° | |
| Resolution of rotation angle: | 0.01° or 1′ | |
| Accuracy of the rotary angle: | 6′ | |
| Object lens’s magnification: | 10×（standard） 20×（optional） 50×（optional） 100×（optional） | |
| View-field of object (mm): | Φ50 φ25 φ10 φ5 | |
| Working distance for object (mm): | 77 87 76 49 | |
| Metal stage size: | 500×260mm | 600×360 |
| Glass stage size: | 250×153mm | 250×153mm |
| Travel—X, Y axis: | 200×100mm | 300×200mm |
| Z axis travel: | 80mm | 80mm |
| Resolution of X Y: | 0.001mm(digital display) | 0.001mm(digital display) |
| Accuracy: | (4+L/25) μm | (4+L/25) μm |
| Stage support | 10kg | 5kg |
| Data processor: | DS600 | DS600 |
| Profile light source | 12V/150W tungsten halogen lamp | |
| surface light source | 12V/150W tungsten halogen lamp | |
| Over dimensions: | 1420×1300×1940 | |
| Power supply: | 110V/220V (switch) ; 50/60HZ(switch) | |
| Optional accessories: | optional 2D measuring software, ensuring convenient operation. | |
