ULM-670H Długościomierz pomiarowy

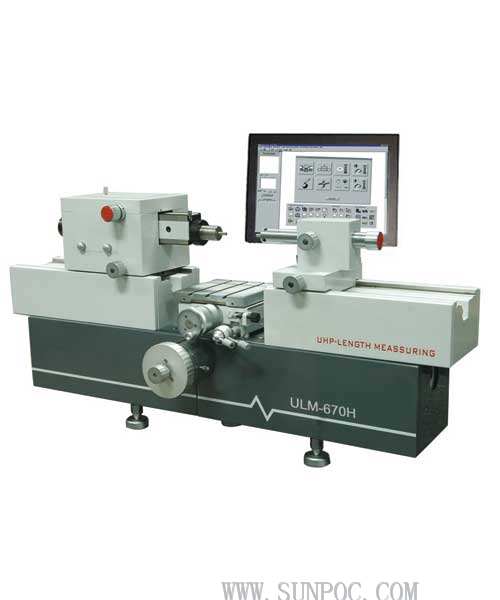

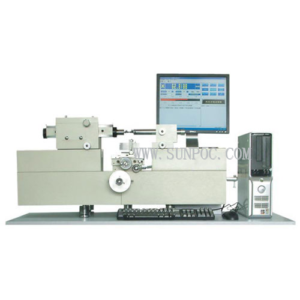

Usages: The Universal Length Measurer （ULM）is a kind of length measuring instrument integrated fine mechanics, optical system and electrical parts into an organic whole. This instrument is used for direct measurement and comparative measurement for dimensions of parts and components and makes special-purpose extra-equipment to the instrument carry out various special measurements. The scope of uses is as follows:
Measuring range (mm):
External size:
Absolute measurement: 1-100
Comparative measurement: 0-670
Internal size:
When using small measuring hook
(maximum insert depth 12, maximum wall thickness 50): 10-400
When using large measuring hook
(maximum insert depth 50, maximum wall thickness 85): 30-370
When using electronic measuring hook: 1-60mm
When using universal measuring hook: 14-112mm
Measurement of internal thread mid-diameter:
When using small measuring hook (thread small diameter 13-30mm)
When using large measuring hook [thread small diameter 31 ~ (70 wall thickness) X 2
Thread distance: 0.5~6 mm
Measurement of external thread mid-diameter: maximum 200mm, thread distance 1~6 mm
Measuring force (N): 0, 1.5, 2.5
Digital resolution: 0.1um
ULM-670H use HEIDENHAIN linear scale and reading card
Accuracy of instrument:
External size direct measurement
ULM-670C/D: (0.5 + L/200) um
ULM-670H: 0.4um
Internal size measurement
ULM-670C/D: (1 +L/100) um
ULM-670H: 0.8um
Universal worktable:
Installment size of worktable: 160X160mm
Adjusting range of height: 0 ~ 100
X axis travel: 25mm
Inclination of workable (enclosuring Y axis ): ±3°
Rotary angle of workable: ±4°
Loading of worktable: 10kg
