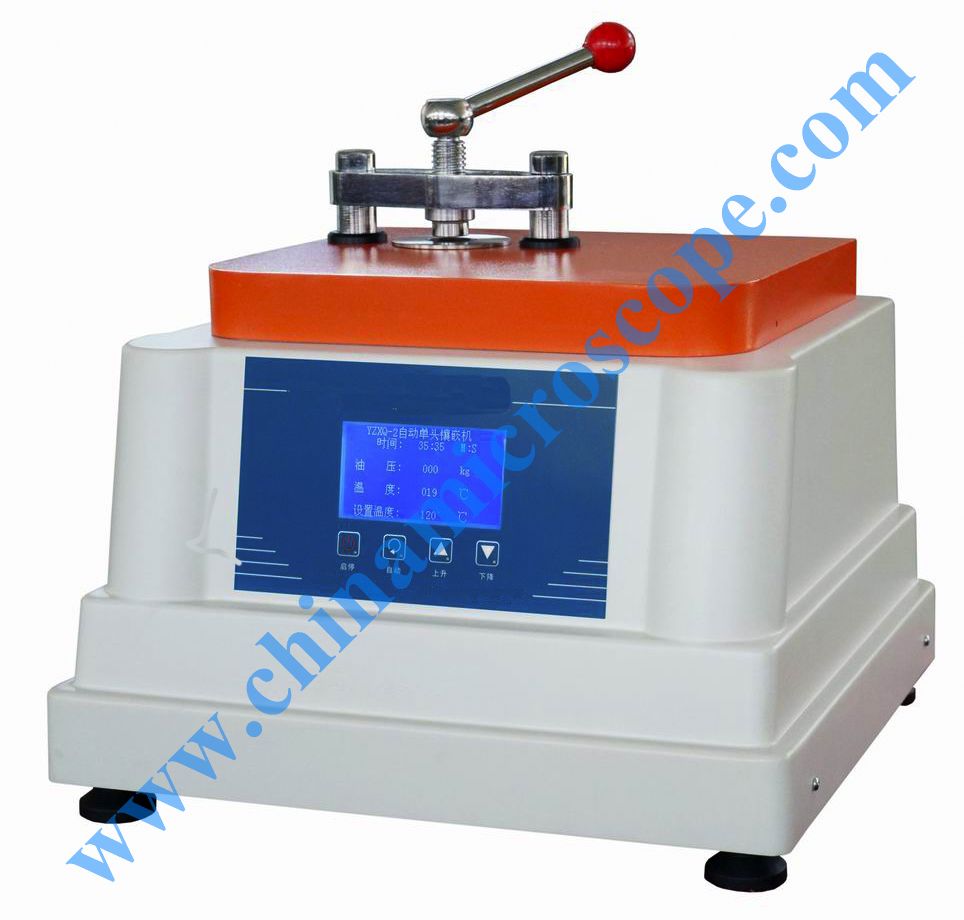

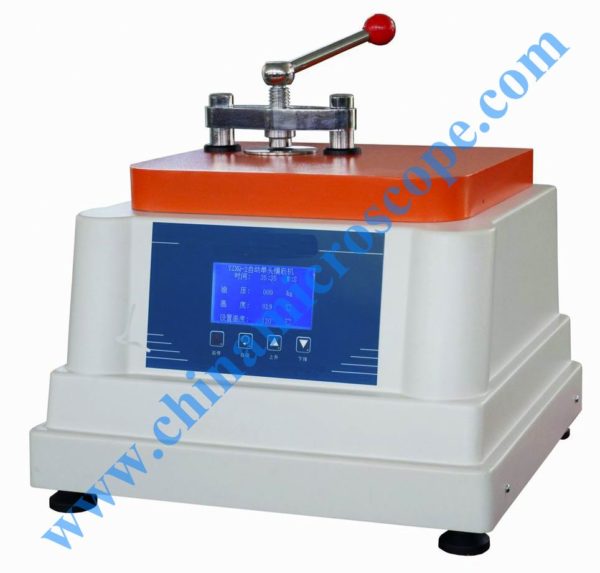

SYZXQ-2 Pojedyncza Automatyczna praska do przygotowywania próbek
Inlaying is a very important process of metallographic sample preparation, especially for some difficult holding tiny samples, irregularly shaped samples, or what needs for protecting edge and automatic grinding and polishing, inlaying is an essential procedure before sample preparation. YZXQ-2 automatic single head mounting press is an advanced hydraulic water-cooling equipment. The whole process of inlaying is con...
Main Parameters:
Mold Diameters: Φ22mm, Φ30mm, Φ45mm (choose one)
Heater Specification: 220V, 2kw (Φ45mm); 220V, 1.2kw (Φ22mm/Φ30mm)
System Pressure: 0~18MPa (The default system pressure is 16MPa.)
Temperature Setting Range: 0~180℃ (The default setting temperature is 120℃.)
Holding Time: 2min20s
Cooling Method: Automatic water cooling
Power Supply: 220V, 50Hz
Dimensions: 520×480×520mm
Weight: 60kg
