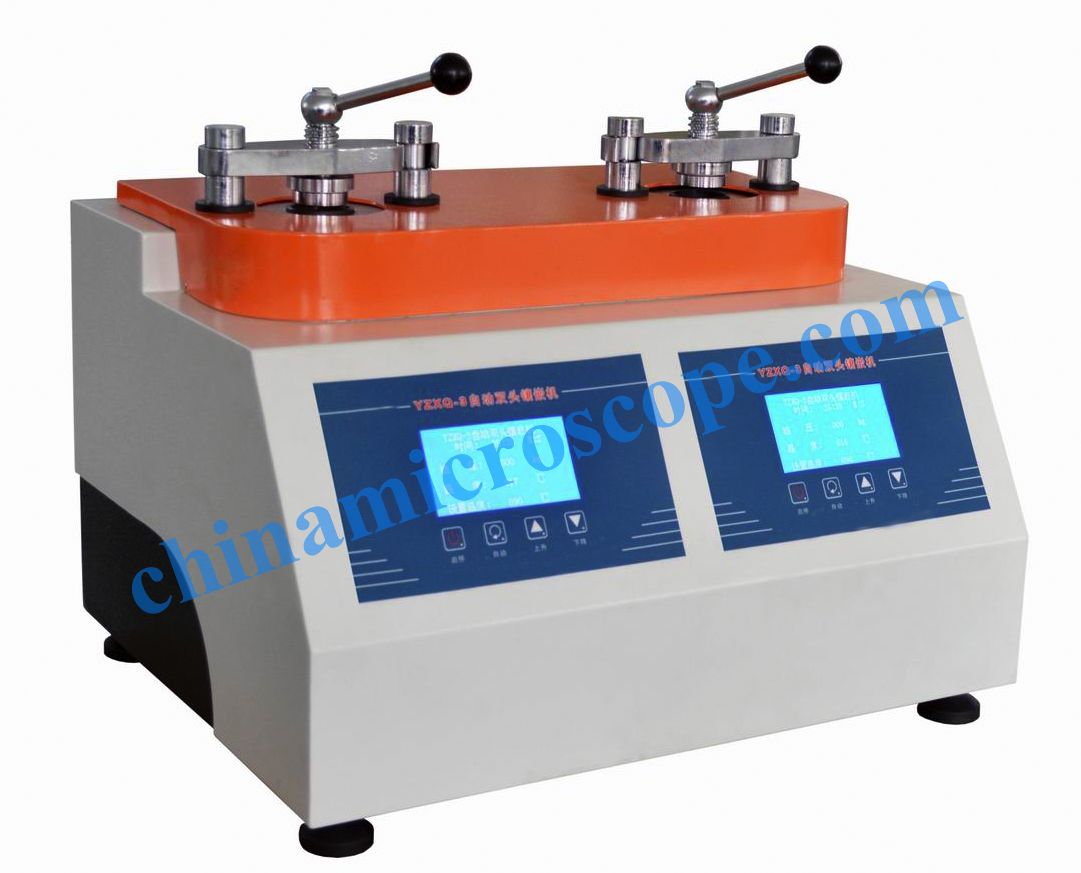

SYZXQ-3 Automatyczna praska do przygotowywania próbek
Description: Inlaying is a very important process of metallographic sample preparation, especially for some difficult holding tiny samples, irregularly shaped samples, or what needs for protecting edge and automatic grinding and polishing, inlaying is an essential step before sample preparation. SYZXQ-3 automatic double head mounting press is an advanced hydraulic water-cooling machine. The whole process of inlaying...
Main Parameters:
Mould Specification: Φ22mm, Φ30mm, Φ45mm (choose two)
Heater: 220V, 2KW (ф45mm); 220V, 1.2KW (ф22mm / ф30mm)
System pressure: 13MPa
Temperature setting range: 0~180℃
Dwell time: 30s
Cooling method: Water cooling
Power: 220V, 50HZ
Dimension: 620×550×550mm
Weight: 105Kg
