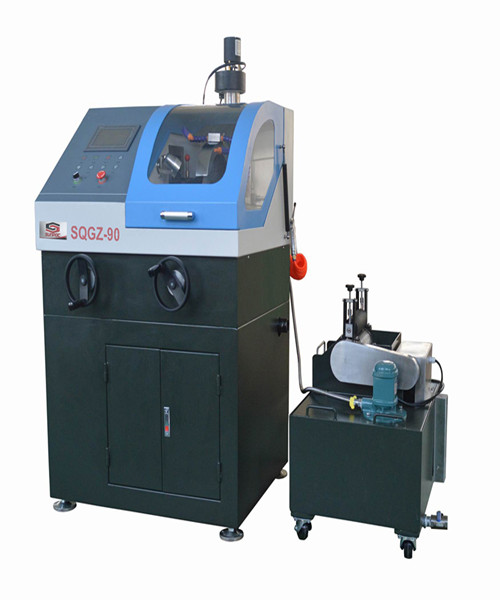

SQGZ-90 Automatyczna przecinarka metalograficzna
Description: SQGZ-90 metallographic sample cutting machine is a precision cutting machine integrating automatic mode and manual mode. With the X axis worktable, it has automatic and continuous cutting function along the Y axis. With the function of adjusting the height of spindle, it is used for a variety of shapes, sizes and materials sample cutting. The cutting ability can meet the daily production inspection and ...
Pobierz dokument produktu
Karta katalogowa PDF dla tego produktu zostanie dodana wkrótce. W międzyczasie możesz wysłać zapytanie, a przygotujemy komplet materiałów informacyjnych.
Main Parameters:
| Model | SQGZ-90 |
| Operating Mode | Manual / Automatic |
| Appearance | Metal shell, Explosion proof transparent observation window |
| Cutting Disc Size | Φ300×2×Φ32mm |
| Rotating Speed of Spindle | 500-3000r/min |
| Max. Cutting Ability | Max. Φ90mm Round bar |
| Feeding Method | Horizontal feeding: The motor drives the horizontal screw for cutting feed. The feeding speed can be adjusted of 1-40mm/min. |
| Feeding Mode | Automatic mode——Automatic feeding, it will automatically return to the original when arriving the set position.
Manual mode——Slewing hand wheel control or keyboard control (motor driven, manual control). |
| Lifting Travel of the Cutting Spindle | 50mm |
| Lifting Method of the Cutting Spindle | Slewing hand wheel control |
| Y axis Travel | 260mm |
| X axis Travel of the Movable Table | 40mm |
| Cutting Platform | Size: 435×300mm, 12mm groove T type working table |
| Cutting Fixture | Rapid push and pull type vise, one set each for left and right operation. Jaw height: 60mm |
| Key Operation | LCD touch screen and poly dome, Emergency stop button |
| Room Lighting | Built-in LED lighting |
| Cooling System | Three cooling water and one cleaning water |
| Magnetic Filtering Circulating Water Tank | 80L |
| Motor | 3kw Frequency conversion motor |
| Power Supply | 380V, 50Hz |
| Dimensions | 910×935×1350mm |
| Weight | 430kg |
