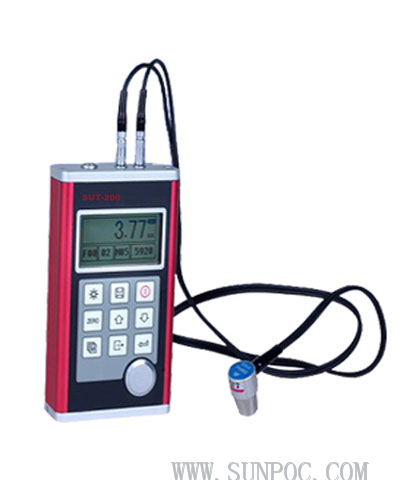

SUT- 200 Ultradźwiękowy miernik grubości powłoki
Ultrasonic Thickness Gauge SUT- 200 Feaures: Capable of performing measurements on a wide range of material. Four transducer models. Probe-Zero function, Sound-Velocity-Calibration function. Two-Point Calibration function. Two work modes: Single point mode and Scan mode. Coupling status indicator showing the coupling status. Auto sleep and auto power off function to conserve battery life. Option software to process ...
Pobierz dokument produktu
Karta katalogowa PDF dla tego produktu zostanie dodana wkrótce. W międzyczasie możesz wysłać zapytanie, a przygotujemy komplet materiałów informacyjnych.
Specification list:
| Display： | 128×64 dot matrix LCD with EL backlight. |
| Measuring Range： | 0.75～300mm (in Steel). |
| SoundVelocity Range: | 1000~9999 m/s. |
| Resolution： | 0.1/0.01mm（selectable）. |
| Accuracy： | ±（0.5%Thickness+0.04）mm |
| Units: | Metric/English unit selectable. |
| measuring circle | Four measurements readings per second for single point measurement, and ten per second for Scan Mode. |
| Memory | Memory for 20 files (up to 99 values for each file) of stored values. |
| Alarm function: | Upper and lower limit can be pre-set. It will alarm automatically when the result value exceeding the limit. |
| Power Supply： | Two “AA” size, 1.5 volt alkaline batteries. 100 hours typical operating time (EL backlight off). |
| Communication： | RS232 serial port. |
| Case： | Extruded aluminum body suitable for use under poor working conditions. |
| Outline dimensions： | 132×76×40 mm. |
| Weight： | 345g |
Packing list:
| No | Item | Quantity | Note | |
| Standard Configuration | 1 | Main body SUT-200 | 1 | |
| 2 | Transducer | 1 | ||
| 3 | Couplant Bottle | 1 | ||
| 4 | Instrument Case | 1 | ||
| 5 | Screwdriver | 1 | ||
| 6 | Alkaline battery | 2 | AA size | |
| 7 | Operating Manual | 1 | ||
| 8 | Warranty Card | 1 | ||
| Optional Configuration | 9 | Transducer: N02 | ||
| 10 | Transducer: N07 | |||
| 11 | Transducer: HT5 | |||
| 12 | Mini printer | 1 | ||
| 13 | Print cable | 1 | ||
| 14 | DataPro for Thickness Gauge | 1 | For use on the PC | |
| 15 | Communication Cable | 1 |
