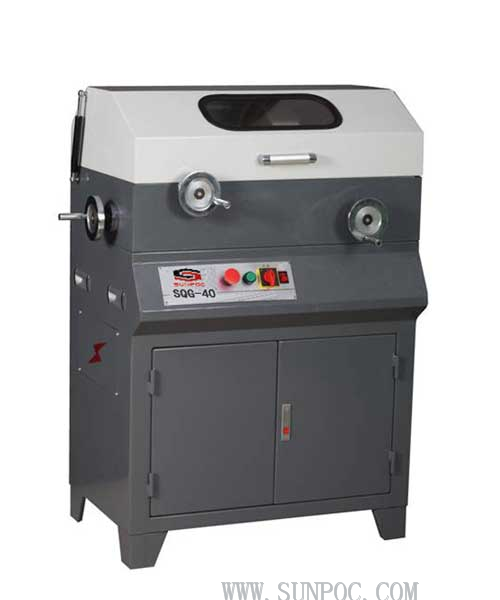

SQG-40 Wielofunkcyjna metalurgiczna przecinarka próbek

SQG-40 multiple cutter is mainly used for cutting cylinder and samples of anomalistic shape, such as multi-angular shape, protruding board etc.. The adopts the all-sealing structure, which can guarantee the cutting sample under the conditions of absolute safety. In order to avoid the sample burning the material texture because of over-heating in cutting, besides the cutter matching strong cooling system, the sample ...

Karta katalogowa PDF

Pobierz dokument produktu

Karta katalogowa PDF dla tego produktu zostanie dodana wkrótce. W międzyczasie możesz wysłać zapytanie, a przygotujemy komplet materiałów informacyjnych.

Main parameters:
Maximal cutting cross section:Ф65mm
Speed of revolution:2800r/min
Emery wheel sheet specification:250×1.5×32mm
Electric motor: YSR 7132 1.1kW 380V 50Hz
The Total Dimensions
870×590×1110mm
The Net Weight
180Kg
