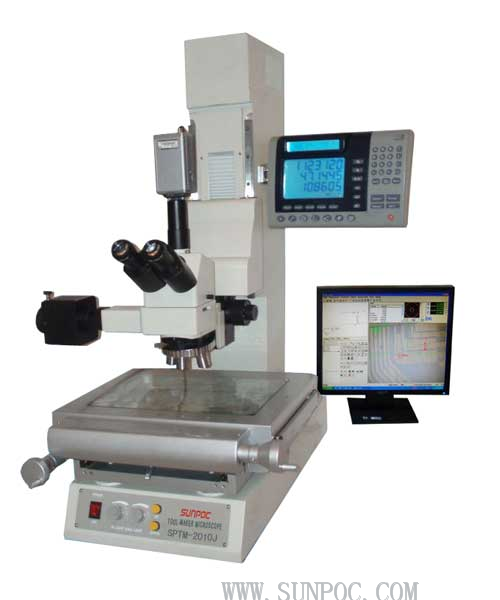

SPTM-2010J Metalurgiczny narzędziowy mikroskop pomiarowy



Applications:

SPTM series Metallurgical Measuring Tool-Maker Microscope is specially for LCD conducting particle color filter mobile phone screen, FPD module semiconductor wafers, FPC, PCB, IC, CD package, image sensor CCD, CMOS PDA.



Features:

◆Illumination: It adopts 12V 50W high-brightness halogen lamp reflect illumination and 10W LED contour illumination unit.

◆Objective: RENI company’s Plan Achromatic Objectives with over-length working distance, which largely improves the image effect and work-piece operating space.

◆Polarized Light: There is adjustable polarizer and polarizing unit inside of machine.

◆Focusing: Auto Z axis by Motor.  Special coarse focusing electric lifting unit improves largely measuring efficiency, fine focusing unit is with minimum division: 2μm..

◆Stage: Large travel 8〞stage is equipped with RENI company’s 0.5um high-accurate linear scales and precise guides, which ensures a stable accuracy  after a long-term use.

◆Measuring Software:  Functional RX-J metallurgical measuring software can quickly deal with large number of measurement data.

Kategorie: ,

Opis

Specification list:

Model SPTM-2010J SPTM-3030J
Fast-moving Stage range 200X100mm 300X200mm
Optical System Infinity Optical System, Objective Tube focusing: 200mm, Focusing Distance: 95mm
Eyepiece Tube Hinge-Type Trinocular Eyepiece Tube, Inclination: 30°,

Interpupillary Distance : 55-75mm
Eyepiece WF10X/22: High Eye-Point Wide View-Field Eyepiece WF10X/22
Objective Turret 5 Holes Objective Transducer
(Objective) (PL N.A) Plan Achromatic Objectives

PL2X/0.055、PL5X/0.14、PL10X/0.28、PL20X/0.29、PL50X/0.42
Working Distance of Objective W.D.：35mm、45mm、34mm、30.8mm、20.5mm
Polarizing Light System Spectral Range: 480-550mm with the polarizer and analyzer,
Illumination 12V 50W Halogen Reflect Illumination, 10W LED contour illumination
Coarse Focusing(Z axis) Electric lifting System (Japan “Shinano” Stepper Motor ), Lifting Range: 250mm
Fine Focusing Manual Fine Focusing with division0.002mm, Changing Range is: 40mm
DIC Interference Mirror OLYMPUS  U-DIC (optional)
Digital Resolution 0.5um
Measuring Error 2+L/250um
Digital Data Processor Multifunctional DRO
CCD Adapter 0.5X CCD Adapter
CCD USA TEO 1/2〞 Color CCD
Measuring Software Metallurgical Measuring Software
Over size 900*700*980 900*700*980
Weight 170kgs 180kgs
Power supplier 110/240V 50/60Hz

Dodatkowe informacje

ID

SPTM-2010J.
