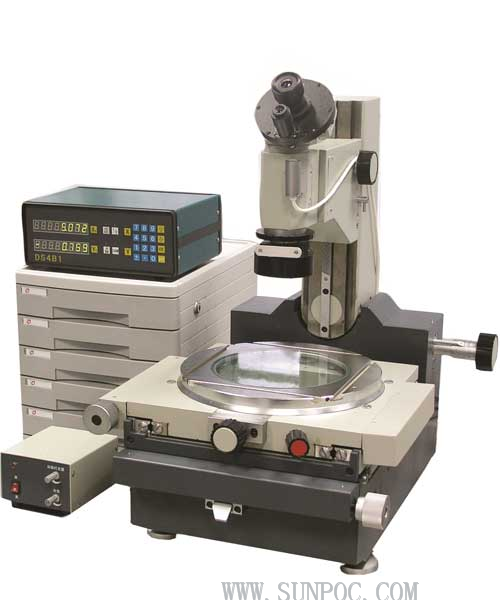

SPTM-14B Mikroskop narzędziowy

Name: SPTM-14B Mikroskop narzędziowy
Brand: SUNPOC

Features: SPTM-14B, The photoelectrical technique is adopted, with a precision grating rule as a measurer for X- and Y-axle as a measurer, with readings direct-viewing and testing convenient. With multiple eyepieces and objectives, the main microscope has a large scope of view field with clear image formation. The main microscope can oscillate left and right, suitable for the measurement for spiral parts. LED-illumi...

Karta katalogowa PDF

Pobierz dokument produktu

Karta katalogowa PDF dla tego produktu zostanie dodana wkrótce. W międzyczasie możesz wysłać zapytanie, a przygotujemy komplet materiałów informacyjnych.

Technical parameters:

Model	SPTM-14B
Range of X-coordinate (mm)	150mm
Range of Y-coordinate (mm)	75mm
Resolution:	0.001 (mm)
Worktable area (mm)	260x270mm
Accuracy of the instrument:	(2+L50)μm,
Angle tilting range:	±12°
Maximum diameter gripped by the tailstock:	Φ70 mm
Maximum length gripped by the tailstock:	190 mm
Overall sizes of the instrument (mm):	720×460×600
Mainframe weight:	100 kg
