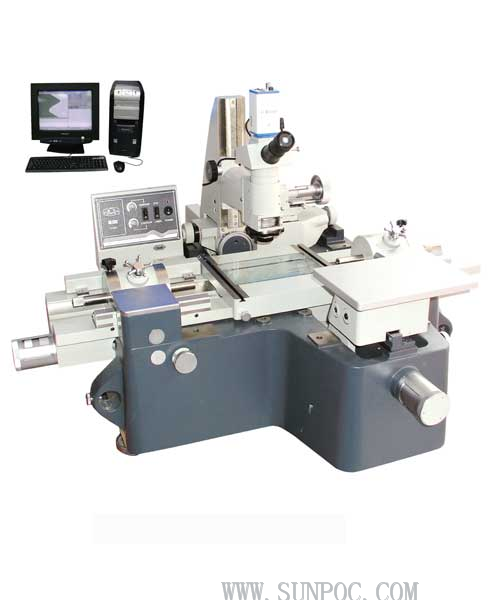

SPTM-13C Uniwersalny mikroskop narzędziowy
Features: The digital image technology is adopted for automatically distinguish the outline boundaries to reduce human errors and improve efficiency. The imported precision grating system is adopted as the sensory element; with stable performance, low heating power, corrosion resistance, pollution resistance; With powerful software, it can complete various complicated measurements. Software data can be input to CAD ...
Technical parameters:
| Model | SPTM-13C |
| Range of X-coordinate (mm) | 200mm |
| Range of Y-coordinate (mm) | 100mm |
| Resolution: | 0.0002 (mm) |
| Worktable area (mm) | 260x270mm |
| Accuracy of the instrument: | (1+L/100)μm, |
| Angle tilting range: | ±12° |
| Maximum diameter gripped by the tailstock: | φ100 mm |
| Maximum length gripped by the tailstock: | 700 mm |
| Transmission lighting: | 24V 150W Halogen tungsten lamp |
| Reflecting lighting: | 24V 150W Halogen tungsten lamp |
| Overall sizes of the instrument (mm): | 1300×1250×800 |
| Mainframe weight: | 450 kg |
Objective:
| Objective magnification | Total magnification | working distance (mm) | Object field (mm) |
| 1X | 40X | 82 | 20 |
| 3X | 120X | 70 | 2.3 |
| 5X | 200X | 49 | 0.8 |
Digital display index head
Angle measuring range: 0o~360o
Resolution ratio of the angle measuring: 5″
Accuracy of the angle measuring: 30″
Optical position indicator
Minimum detection aperture: φ5 mm
Maximum detection depth: 15mm Metering force: 0.1N
Locating stability: 0.001mm
Limit error gauged for head diameter: 0.0005mm
Maximum load of the instrument: 40kg
Overall size of the principal machine of the instrument: (L×B×H) = 1300×1250×800
Weight of the principal machine of the instrument: 450kg
Ambient environment of the instrument service:
Room temperature: 20℃±1°
Relative humidity: Not more than 60%
