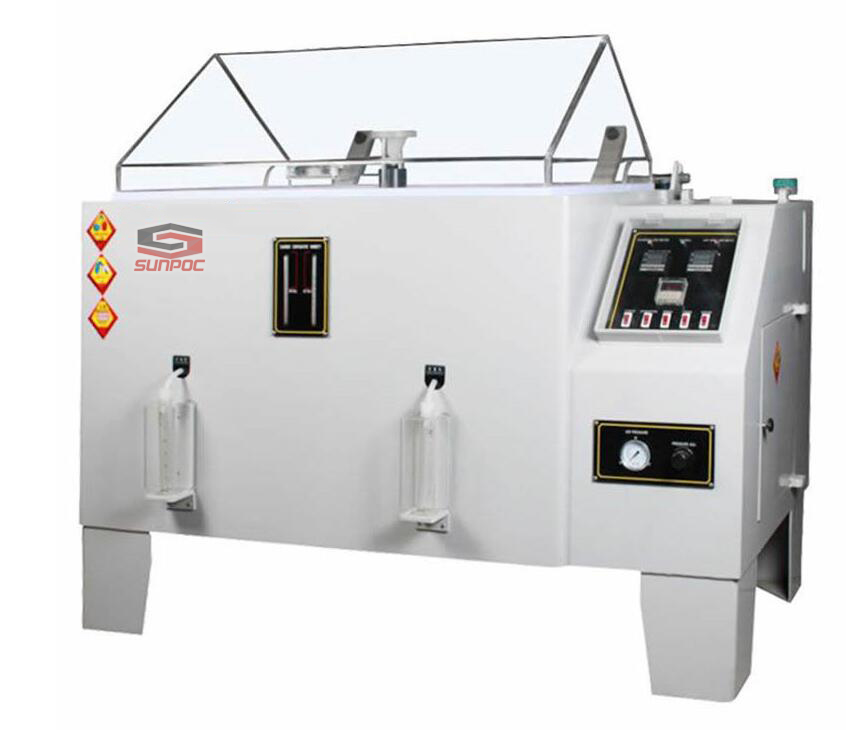

SP-HL-90 Komora Solna
Usage: Salt Spray Test Chambers offer the most realistic and dependable corrosion test, widely used to test corrosion resistance of automotive, paint, surface coating, chemical, aerospace, electronic, car industry, offshore and defense industries. Standard： DIN 50021: Salt spray testing JIS Z2371 Methods of Salt Spray Testing SGM-GM4465P Water Fog Humidity Test ASTM B117 Standard Practice for Operating Salt Spray Ap...
Specification list:
| Model | NSS | SP-HL-90 | SP-HL-120 | SP-HL-160 | SP-HL-200 |
| CASS | SP-AHL-90 | SP-AHL-120 | SP-AHL-160 | SP-AHL-200 | |
| CCT | SP-AHL-90 | SP-AHL-120 | SP-AHL-160 | SP-AHL-200 | |
| Interior dimensions (mm) | W | 900 | 1200 | 1600 | 2000 |
| D | 600 | 850 | 1000 | 1200 | |
| H | 500 | 600 | 600 | 600 | |
| Exterior dimensions (mm) | W | 1460 | 1900 | 2600 | 3000 |
| D | 910 | 1150 | 1450 | 1650 | |
| H | 1280 | 1500 | 1550 | 1600 | |
| Chamber Tank | 270 | 480 | 800 | 1440 | |
| Solution Tank | 50 L | 90 | 90 | 120 | |
| Testing Temperature | NSS ACSS 35℃±1℃ / CASS 50℃±1℃ | ||||
| Air Temperature | NSS ACSS 47℃±1℃ / CASS 63℃±1℃ | ||||
| Solution Consistence | NaCl 5% | ||||
| PH Value | NSS (Nacl) : 6.5~7.2 / CASS(Cu / CH COOH ): 3.0~3.2 | ||||
| Temperature fluctuation | ± 0.5℃ | ||||
| Temperature uniformity | ≦2. 0℃ | ||||
| Temperature Resolution | 0.1℃ | ||||
| Spray quantum | 1.0~2.0(ml/80cm2/h) | ||||
| Chamber Material | polyvinyl chloride (P.V.C & P.P) | ||||
| Heater | Corrosion-resistant titanium tube | ||||
| Temperature sensor | Platinum Resistance (PT-100) | ||||
| Safety device | Over-temperature protection , leakage protection | ||||
| Ambient temp. & humid. range | +5℃ ~ +35℃ / <85%RH | ||||
| Power Supply | AC 220V/50HZ/1P AC 380V/50HZ/3P | ||||
