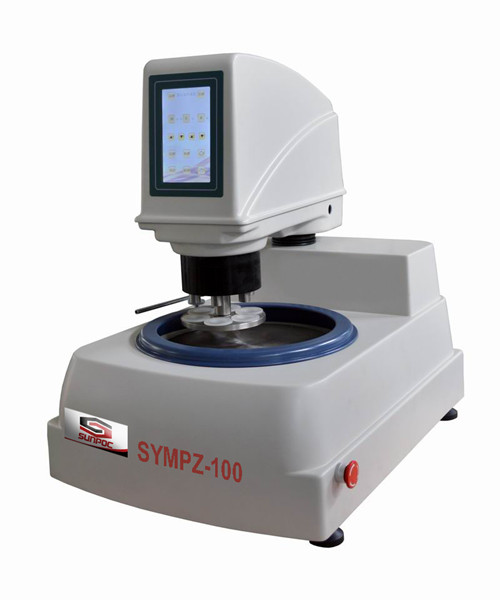

SYMPZ-100(300\250) Metalograficzna szlifierka i polerka próbek
Description: In the metallographic sample preparation, pre-grinding, polishing and grinding are the indispensable procedures. This machine is controlled by single chip microcomputer. With beautiful appearance, stable performance and convenient operation, it realizes the automation of grinding and polishing. Therefore it is the ideal equipment for metallographic sample preparation. Features: l New and beautiful appea...
Main Parameters:
Grinding and Polishing Disc Diameter: 300mm or 250mm
Abrasive Paper Diameter: 300mm or 250mm
Rotating Speed: 100~1000r/min, stepless Or four speed 250r/min, 500r/min, 750r/min, 1000r/min
Rotating Direction: Clockwise or Anticlockwise
Electromotor: DC brushless motor, 220V, 1.1kw
Sample Holding Quantity: 6 pcs
Sample Holder Specification: Φ22mm, Φ30mm, Φ45mm (choose one)
Pressure Method: Single pneumatic pressure / Central pneumatic pressure
Single Pressure Force: 0~8kg
Central Pressure Force: 0~33kg
Rotating Speed of Grinding Head: 30~120r/min, stepless
Time Setting: 0~999min
Electromotor of Grinding Head: DC brushless deceleration motor, 220V, 100W
Dimensions: 725×500×760mm
Weight: 75kg
