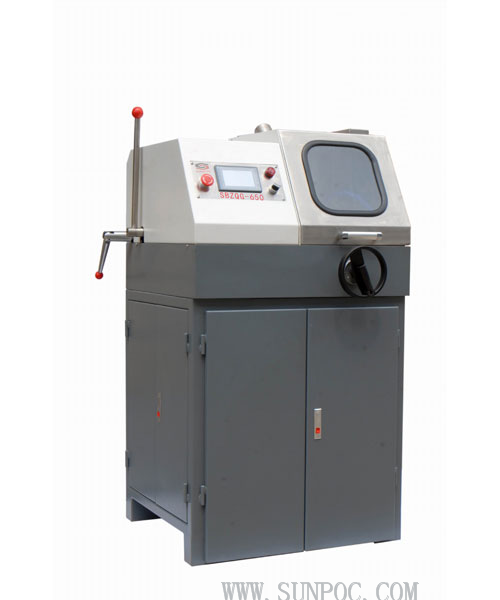

SBZQG-650 półautomatyczna przecinarka metalograficzna
The machine is a combination of manual / PLC control and automatical control as one of the metallographic sample cutting machines, with very high reliability and control ability. It is appropriate for cutting, absolute cutting, incremental cutting-three functions cutting way, in order to make the cutting room easy to clean and ensure the spindle motor’s safety, we use mechanical and electrical separation. The cuttin...
Main parameters:
- Manual / electric can choose freely.
- Cutting feed speed: 3 mm / min, 5 mm / min, 8 mm / min (user may modify the set speed according to requirement)
- Y-axis maximum travel distance: 235mm
- Z axis maximum travel distance: 35mm (cut style)
- The maximum cutting diameter: 65mm
- The cooling water tank capacity: 70 liters
- Motor: 2.2kw, speed: 2800 rpm / min;
- Power: 380V, 50HZ
- Dimensions: 860 × 780 × 1330mm
- The body forms: vertical
- Weight: ~ 110kg
- Three-phase five-wire 380V 50Hz
