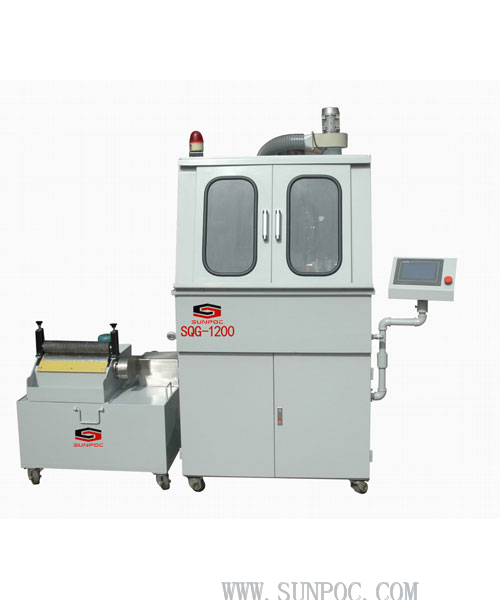

SQG-1200 Automatyczna przecinarka metalograficzna SUNPOC
SQG-1200 uses full automatic feeding and full automatic exit, the guard is not required, that is safe and saves efforts, ensuring the quality. According to the special nature of the work-piece, the machine uses two types of processing mode (that is, the work-piece does not move, cutting wheel moves) for linear feed cutting; Another type (that is, the work-piece moves, the cutting wheel does not move) contains coolin...
Main parameters
- Cutting wheel (grinding wheel): ￠ 400 × ￠ 32 × ￠ 350 × ￠ 32 × 2
- Max. diameter of cut capacity: ￠ 120mm
- Max. rectangular cutting capacity (W × H): 220mm× 120mm
- The vertical (Z-direction) distance (maximum) of the cutting wheel: 180 mm
- The cutting wheel (Z-direction) of the moving distance: 180mm
- The motor power: 7.5 KW
- Rotating speed: 2800r/min
- The cutting wheel moving way: vertically linear direction
- The cutting table (X × Y): 500mm× 350mm
- machine size : 100cm× 110cm × 170cm
- Weight: about 600 kg
