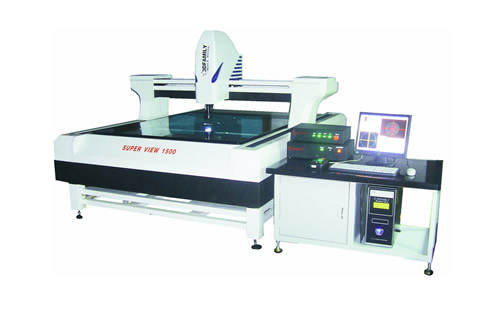

SP-SV-1200 Wideoprojektor pomiarowy o dużym zasięgu
BIG RANGE VIDEO MEASURING MACHINE Product Features 1. Super range bridge-moving structure, running steadily and with no distortion 2. Timing transmission of Y axes, closed loop design of X axes，insure that when running, the physical phenomenon of swinging left and right or swinging tail will not appear and so the precision increases. 3. CNC control system for the 4 axes (X/Y/Z full closed loop servo control system/U...
Technology parameters
|
Model
|
SP-SV-1000
|
SP-SV-1200
|
SP-SV-1500
|
|
Measuring Range (X/Y/Z:mm)
|
800×1000×200
|
1000×1200×200
|
1200×1500×200
|
|
Dimension(mm)
|
1600×2300×1500
|
1800×2500×1500
|
2000×2700×1500
|
|
Operation Mode
|
Automatic
|
||
|
CCD
|
430,000 pixel Japanese original color CCD
|
||
|
Lens
|
American NAVITAR Motor Zoom lens
|
||
|
Magnification
|
Optical magnification: 0.7X-4.5X;
Image magnification: 28X-180X
|
||
|
Software
|
OVM FOR CNC
|
||
|
Optical Ruler Resolution
|
1μm
|
||
|
Repeatability
|
2μm
|
||
|
Precision
|
(3+L/200)μm
|
||
|
Machine Load Capacity
|
20kg
|
||
|
Applicable Environment
|
Power:110V~220V±10% 50/60HZ
Temperature: 20±5 oC Humidity: 45%-75%
|
||
|
Free Maintain Time
|
One year
|
||
