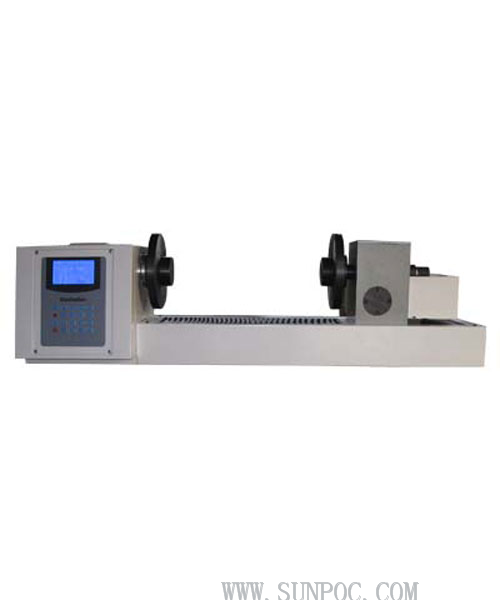

NJS-02A Cyfrowa skręcarka
NJS-02 manual wheel type NJS-02A Electronic load type Introduction: This NJS-02 series of Digital Torsion Tester use for metal materials, non-metallic materials, composite materials and components to reverse the performance tests. Mainly applied to measure quality control; metallurgical steel; machinery manufacturing; civil aviation; institutions of higher learning; research laboratories; inspection arbitration, tec...
Technical Parameters:
| Model | NJS-01 | NJS-02 |
| NJS-01A（Electronic） | NJS-02A（Electronic） | |
| Max Test Torque | 100Nm | 200Nm |
| Torque display value | 2-100Nm | 4-200Nm |
| Min. reading of test torque | 0.1Nm | 0.1Nm |
| Relative Error of Torque Display-value | ±1% | |
| Repetitive Error of Torque Display-valu | ±1% | |
| Max. reading of torsion angle | 0 ~ 9999.9° | |
| Min. reading of torsion angle | 0.01 | |
| Relative Error of Torsional Angle | ±1% | |
| Max. distance between torsion clamp | 0-260mm (Max range is 700mm) | |
| Power supply | 220V±10%，50Hz | |
| Machine over size | 950X330X4000mm | |
| Weight | 100kg | |
