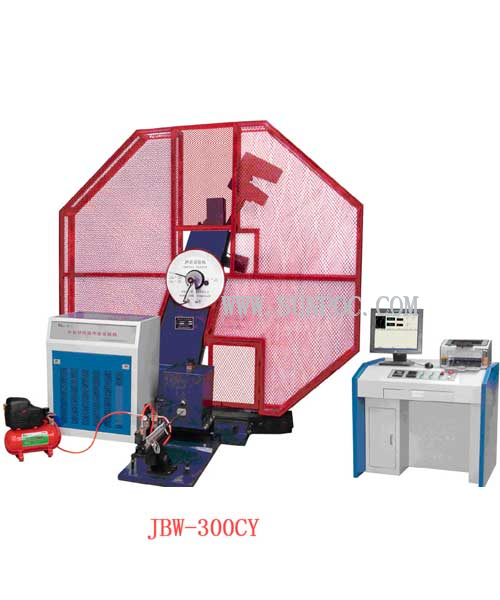

JBW-CY series Młot udarnościowy Chrapy
JBW-CY series low temperature impact tester The impact tester is used for testing the impact resistance of the metal material at a low temperature and dynamic load state so as to determine the property of the material at the low temperature and dynamic load state. The impact tester is a testing instrument indispensable to the material test and the research and development of new materials by units of metallurgical m...
Specification Technical:
| Model | JBW-300CY | JBW-450CY | JBW-750CY |
| JBS-300CY | JBS-450CY | JBS-750CY | |
| Impact Energy | 300 J | 450 J | 750 J |
| Scale Range | 0-300 J | 0-450 J | 0-750 J |
| Resolution | 2 J | 3 J | 5J |
| Distance between the Center of the Pendulum Shaft and the Impact Point | 750mm | ||
| Impact Speed | 5.2m/s | ||
| Refrigeration Mode | Compressor | ||
| Low Temperature Range | 0~-60℃ | ||
| Temperature Control Precision | Fluctuation ±0.5℃ Grads: 1 degree | ||
| Included Angle of Impact Blade | 30° | ||
| Pre-raising Angle of the Pendulum Hammer | 150° | ||
| Span of the Test Sample Support | 40mm+0.2mm | ||
| Round Angle of Tong Mouth | R1.25mm | ||
| Round Angle of Impact Blade | R2mm，R8mm | ||
| Specification of Test Sample | 10（7.5, 5）mm×10mm×55mm | ||
| Capacity of Test Sample Box | 20 pieces | ||
| Impact test POWER | AC 380V 50Hz | ||
