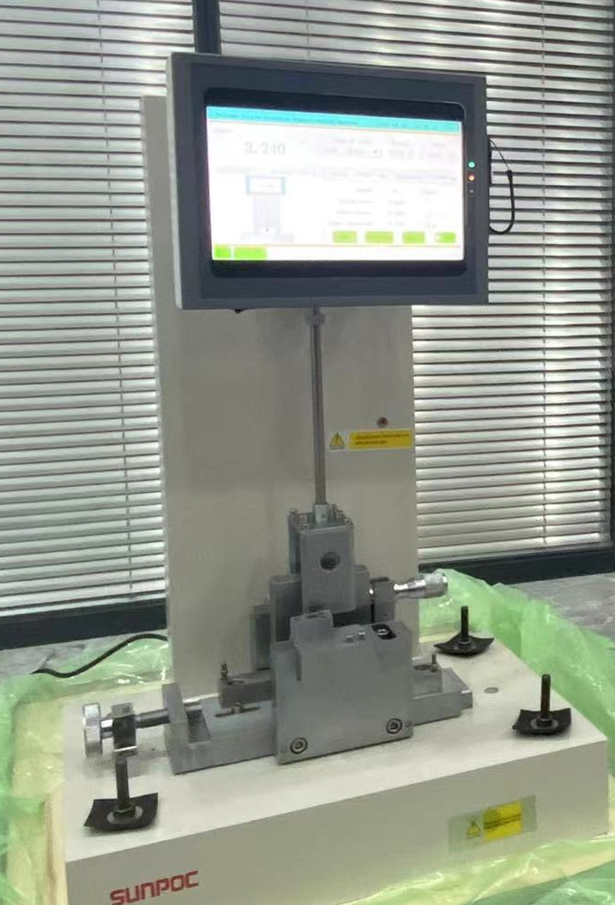

Młot Charpy & Izod cyfrowy z dotykowym panelem.
Profile:
JBIC (Izod & Charpy) Series are innovative
multi-test instrument for the determination of
polymers and composite materials resilience
according to both Charpy and Izod methods.
Is used to test or determine the anti-impact
capacity of non-metal materials, such as hard
plastic, enhanced nylon, ceramic, toughened glass, pottery, cast stone, dielectric etc. and other metallic and non-metallic materials. Being adopted by
scientific research institutes, colleges, universities
and many non-metallic materials manufactures
and laboratories. Also, it has advantages of simple in structure, easy to operate and high accuracy.
This machine is developed according to the
standard of Standards ENISO179, ENISO180,
ISO9854, DIN53453, ASTMD256
It also can be connected to the PC.
Features:
1) Energy: Charpy 1J, 2J, 4J, 5J, 7.5J, 15J, 25J
Izod 1J, 2.75J, 5.5J, 11J, 22J
2) Impact Speed: Charpy 2.9m/s 3.8m/s
Izod 3.5m/s
3) Support: Charpy 40mm 60mm 70mm 95mm
Izod 22mm
4) Size (L×W×H): 500mm×350mm×780mm
5) Weight: 130kg
6) Power Supply: AC220±10V 50HZ
7) Working Condition: 20±5℃, RH≦80%
