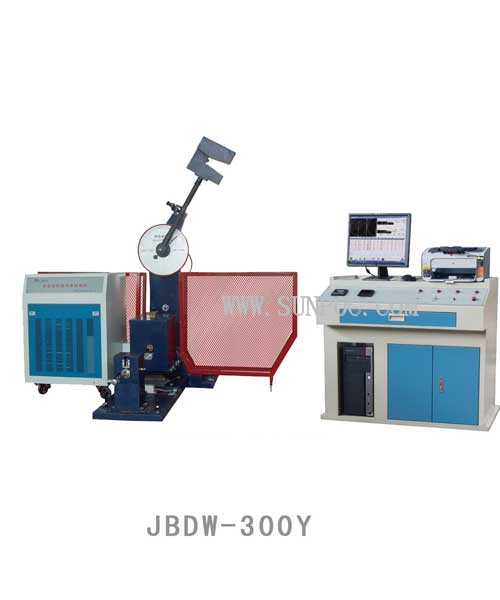

JBDW-300Y Automatyczny młot udarnościowy Chrapy
JBDW-300Y Computer Control Low Temperature Automatic Impact Tester The impact tester is used for testing the impact resistance of the metal material at a low temperature and dynamic load state so as to determine the property of the material at the low temperature and dynamic load state. The impact tester is a testing instrument indispensable to the material test and the research and development of new materials by u...
Pobierz dokument produktu
Karta katalogowa PDF dla tego produktu zostanie dodana wkrótce. W międzyczasie możesz wysłać zapytanie, a przygotujemy komplet materiałów informacyjnych.
Specification Technical:
| Model | JBDW-300Y | JBDW-300YI |
| JBDS-300Y | JBDS-300Y I | |
| Impact Energy | 150/300J | |
| Included Angle of Impact Blade | 30° | |
| Pre-raising Angle of the Pendulum Hammer | 150° | |
| Distance between the Center of the Pendulum Shaft and the Impact Point | 750mm | |
| Impact Speed | 5.2m/s | |
| Span of the Test Sample Support | 40mm | |
| Round Angle of Tong Mouth | R1-1.5mm | |
| Round Angle of Impact Blade | R2mm，R8mm | |
| Specification of Test Sample | 10mm×10mm×55mm | |
| Capacity of Test Sample Box | 20 pieces | |
| Refrigeration Mode | Compressor | |
| Low Temperature Range | 0~-60℃ | 0~-80℃ |
| Temperature Control Precision | Fluctuation ±0.5℃ Grads: 1 degree | |
| Over Size | 1600x850x1530mm | |
| weight | 880kg | |
| Impact test POWER | AC 380V 50Hz | |
