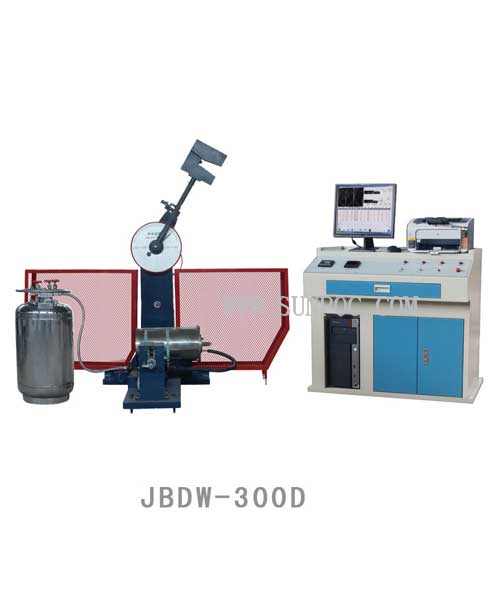

JBDW-300D Automatyczny młot udarnościowy Chrapy
JBDW-300D Computer Control Low Temperature Automatic Impact Tester The impact tester is used for testing the impact resistance of the metal material at a low temperature and dynamic load state so as to determine the property of the material at the low temperature and dynamic load state. The impact tester is a testing instrument indispensable to the material test and the research and development of new materials by u...
Specification Technical:
| Model | JBDW-300D |
| JBDS-300D | |
| Impact Energy | 150/300J |
| Included Angle of Impact Blade | 30° |
| Pre-raising Angle of the Pendulum Hammer | 150° |
| Distance between the Center of the Pendulum Shaft and the Impact Point | 750mm |
| Impact Speed | 5.2m/s |
| Span of the Test Sample Support | 40+0.2mm |
| Round Angle of Tong Mouth | R1-1.5mm |
| Round Angle of Impact Blade | R2mm，R8mm |
| Specification of Test Sample | 10mm×10mm×55mm |
| Capacity of Test Sample Box | 6 pieces |
| Refrigeration Mode | Liquefy nitrogen |
| Low Temperature Range | 0~-190℃ |
| Temperature Control Precision | Fluctuation ±2℃ Grads: 3 degree |
| Over Size | 1600x850x1530mm |
| weight | 880kg |
| Impact test POWER | AC 380V 50Hz |
