DWTT series Młot udarnościowy Charpy

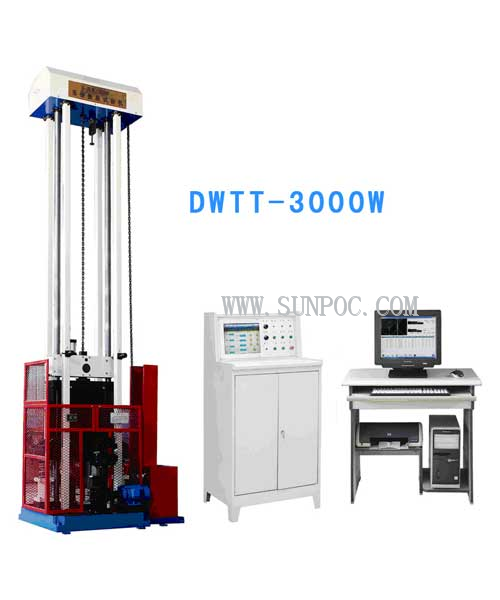

DWTT series drop hammer tearing tester machine DWTT drop hammer tearing tester is applicable to various ferritic steel, in particular to a drop hammer tearing impact test of various pipeline steel. The DWTT drop hammer tearing tester meets GB/T8363-2007 and an ASTM E436 testing method. A mainframe of the drop hammer tearing tester adopts a four-support type stable structure, has good rigidity and double slide guide ...
Main Technical Indexes
| Specification Model | DWTT-30000W | DWTT-40000W | DWTT-50000W |
| DWTT-30000S | DWTT-40000S | DWTT-50000S | |
| Maximum Impact Energy | 30000J | 40000J | 50000J |
| Maximum Lifting Height | 2500mm | ||
| Mouthing Height of Main Machine | ≤5.8m | ||
| Impact Velocity | ≥5m/s | ||
| Support Span | 254+1.5mm | ||
| Curvature Radius of Hammer Edge of Drop Hammer | R25.4±2.5mm | ||
| Curvature Radius of Support Jaw | R14.3±1.59mm | ||
| Deviation between the Central Line of Hammer Edge of Drop Hammer and the Center of Support Span | ±1mm | ||
| Rockwell Hardness of Hammer Edge and Supporting Surface of Support Jaw | ≥HRC55 | ||
| Sample Specification | 300×70×（6-32）mm | ||
| External Dimension of Testing Machine | 1600×2300×5500mm | ||
